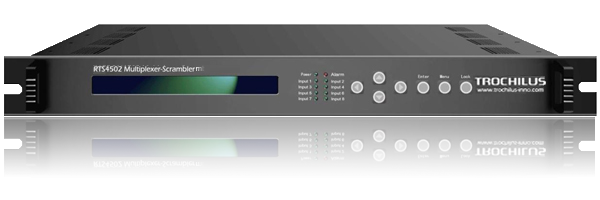

RTS4502 Multiplexer-Scrambler
Features
- Compliant with ISO13818 & EN300468 standard
- DVB common scrambling system(ETR289) supported, simulcrypt standards ETSI 101 197 & ETSI 103 197
- Highly integrated multiplexing and scrambling in one unit
- Function of re-multiplexing of 2-channel TS, configured with 2*ASI+2*ASI(backup) interfaces
- Built-in PCR capability
- Functions of PID filtering & re-mapping
- Up to 4 different simulcrypt CAS supported
- Equipped with empty packets filtering of IP out
- TS over IP output in UDP protocol, unicast and multicast modes available
- Providing PSI/SI compilation and NIT, LCN insertion
- Alarming function
- Easy-operation by LCD and keyboard on front panel
- Remote control by SNMP
Instruction
RTS4502 Tuner&ASI-In (RTS4502-A ASI input) Multiplexer-Scrambler is a high-quality device, which is configured with multiplexing and scrambling modules in one unit. This unit has input choices of 6*Tuner+2*ASI(RTS4502) or 8*ASI(RTS4502-A), and provides output of 2*ASI+2*ASI(backup)+2*TSoIP. IP output is of Gigabit Ethernet(1000M), capable of transporting 2*MTPS(sharing one data port, in mirror of 2*ASI), and unicast & multicast can be optional. Max. 4 different CA simulcrypt is supported. Besides, this multiplexer-scrambler is also equipped with more functions, such as PSI/SI generating and editing, re-multiplexing, PID re-mapping, PCR accurate adjusting, etc.. With high integration, excellent performance and competitive cost, RTS4502(-A) is widely used in CATV broadcasting system, digital TV head-end projects and so on.
Specifications
| Input | ||
| Input interface | 6*Tuner+2*ASI (Tuner in DVB-S/S2, DVB-C, or ISDB-T mode) (item RTS4502-T) | |
| 8*ASI (item RTS4502-A) optional | ||
| MPEG Frame | 188/204 byte, automatic adaption | |
| Re-Multiplexing | ||
| Two Channels TS Re-Multiplexing | ||
| PID re-mapping (auto/manual optional) | ||
| Providing PSI/SI compilation and NIT, LCN insertion | ||
| PCR accurate adjusting | ||
| PID Output range 0x0000~0x1FFF | ||
| Scrambling | ||
| Simul-crypt CA | Up to 4*CA | |
| Standard | ETR289, ETSI 101 197, ETSI 103 197 | |
| Connection | Local and Remote connect scrambling |
|
| Output | ||
| ASI Output | Number | 2*ASI+2*ASI(backup) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Protocol | TS over IP output, UDP protocol |
| IP Output Channel Qty. | 2*MPTS (as mirror of ASI output) as mirror of ASI output as mirror of ASI output |
|
| Mode | Unicast and multicast | |
| Connector Type | RJ45, Gigabit Ethernet(1000M) | |
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet software | |
| Remote Control | by SNMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.0 KGS | |

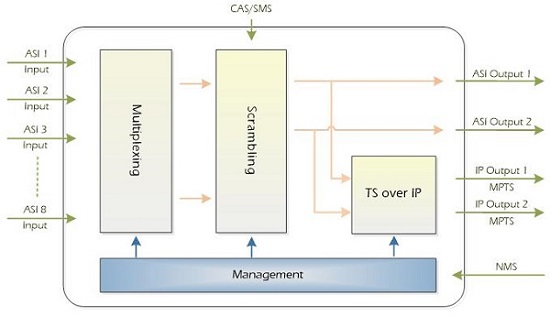

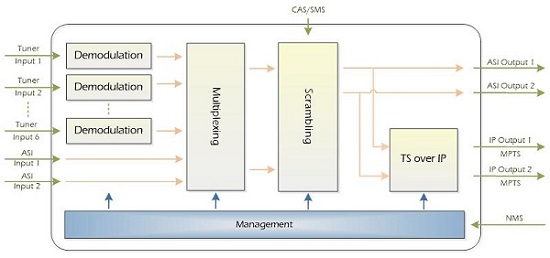

Diagram
