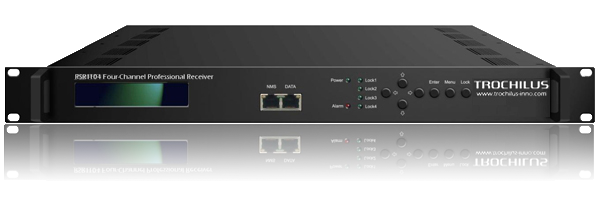

RSR1104 4CH Professional Receiver
Features
- Up to 4*Tuner input, modes in DVB-T2/T, DVB-S/S2, DVB-C
- Integrated demodulation & descrambling modules within one unit
- 1*ASI and 1*IP(UDP, RTP/RTSP protocol) inputs, for Re-Multiplexing
- Each CAM able to decrypt multiple programs from Tuner, ASI, or IP input
- Max. 4*DVB-CI slots for multi-program decryption
- IP(1*MPTS & 8*SPTS) output on UDP and RTP/RTSP protocol
- Unicast and multicast modes supported for IP output
- Support maximum 128 PID mapping per input
- Monitoring working situation by network system
- Software upgrading through IP
- Easy-operation by LCD and keyboard on front panel
- BISS-1 and BISS-E decryption modes supported
Instruction
RSR1104 Four-Channel Professional Receiver is a device integrated with modules of demodulation and de-scrambler modules. It professionally supports tuner input in DVB-C, DVB-T/T2, or DVB-S/S2, and outputs with ASI or IP streams. It is also configured with 1*ASI and 1*IP inputs, so that external streams can be re-multiplexed with the input signals from Tuner. The device can be applied to Digital Satellite News Gathering (DSNG), due to the adoption of BISS descrambling function .With the two CAMs/CIs, programs input from encrypted RF, ASI and IP can be descrambled. IP output stream can be in 1*MPTS and 8*SPTS, in unicast and multicast modes. RSR1104 is a stable, mature and high integrated receiver with excellent performance index. Worldwide operators have been adopted this unit in their digital TV head-end contribution/distribution system, IPTV projects and so on.
Specifications
| Tuner input | ||
| DVB-C Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Standard | J.83A/B/C | |
| Input Frequency | 47 ~ 860 MHz | |
| Input Level | 45 ~ 75 dBuv | |
| Symbol Rate | 1 ~ 7 Mbaud | |
| Constellation | 16/32/64/128/256 QAM | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| DVB-S/S2 Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Input Frequency | 950 ~ 2150 MHz | |
| Symbol Rate | 2 ~ 45 MBaud (for DVB-S) | |
| 1 ~ 45 Mbaud (for DVB-S2, QPSK) | ||
| 1 ~ 30 Mbaud (for DVB-S2, 8PSK) | ||
| Code Rate | (DVB-S, QPSK) 1/2, 2/3, 3/4, 5/6, 7/8; | |
| (DVB-S2, QPSK, 8PSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
| Input Level | -65~-25 dBm | |
| Roll-off Factor | (DVB-S) 0.35; (DVB-S2) 0.35, 0.25, 0.2 |
|
| DTV-T/T2 Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Input Frequency | 44 ~ 1002 MHz | |
| Input Level | -70 ~ -20 dBm | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| FFT | 2K/8K | |
| Input | ||
| ASI Input | Standard | DVB-ASI, EN50083-9 |
| Input Bit-Rate | ≤49Mbps | |
| Connector Type | 1*BNC female, 75Ω | |
| IP Input | Connector Type | RJ45 10/100M Base-T |
| Protocol | UDP, RTP/RTSP | |
| Bit-Rate | ≤70Mbps | |
| DVB-CI Module | ||
| Descrambling Processing | DVB-CAS | |
| Smart Card Interface | ISO7816 | |
| Interface Card Separation | PCMCIA | |
| BISS Mode | BISS-1, BISS-E | |
| Output | ||
| ASI Output | Number | 2*ASI |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 54 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Protocol | TS over IP output, UDP,RTP/RTSP protocol Multicast/Unicast |
| Output Channel Qty. | 1*MPTS & 8*SPTS | |
| Connector Type | RJ45, 10/100M Base-T | |
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet interface | |
| Remote Control | by web NMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.0 KGS | |

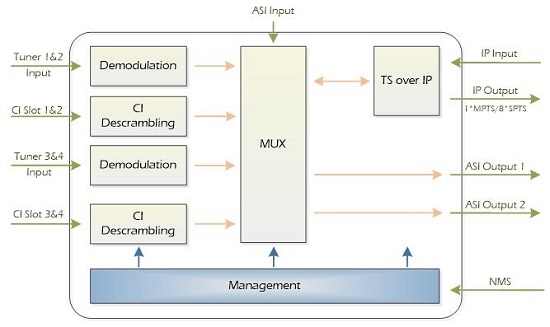

Diagram
