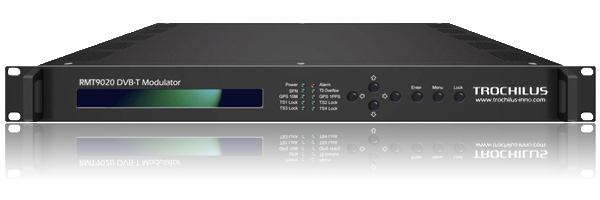

RMT9020 DVB-T Modulator
Features
- Standard of DVB-T(EN300 744)
- Providing 4*ASI input, and 1*Tuner input for Digital Pre-Distortion(DPD)
- 1*GPS 10MHz reference clock in and loop out configured
- Configured with 1*GPS 1PPS input and loop out
- Applicable to MFN & SFN
- Adoption of adaptive linear and non-linear Digital Pre-Distortion(DPD) technologies
- More transfer bandwidth in 2M, 5M, 6M, 7M &8M
- Excellent TS rate adaption and PCR re-calculation
- Easy-operation by LCD and keyboard on front panel
- Management by SNMP
Instruction
RMT9020 DVB-T Modulator adopts several advanced functions and technologies, based on its fundamental module. It adopts Linear Digital Pre-Distortion and Non-Linear Digital Pre-Distortion, with which output performance of digital TV transmitters are effectively improved. The device supports all modes of DVB-T, either Single Frequency Network(SFN) or Multiple Frequency Network(MFN), with ability of hierarchical modulation. RMT9020 inputs with 4ASI and 1Tuner(for DPD), and additionally with 1GPS 10MHz reference clock and 1GPS 1PPS. It then modulate and output 1*Tuner in 30~960MHz, in good index. The device is widely used in countries and markets adopting DVB-T standard, offering a good choice for operators of digital TV broadcasting and head-end providers.
Specifications
| Input | |||
| TS Input | Number | 4*ASI, hot backup supported | |
| Standard | EN 50083 ASI | ||
| Mode | byte or burst | ||
| MPEG Frame | 188/204 byte | ||
| Connector | BNC interface, 75 Ω | ||
| RF Input | Number | 1*RF | |
| Mode | for Digital Pre-Distortion(DPD) | ||
| Connector | BNC interface, 75 Ω | ||
| GPS 10MHz clock Input | Number | 1*10MHz reference clock | |
| Mode | for Single Frequency Network(SFN) | ||
| Connector | BNC interface, 75 Ω | ||
| GPS 1PPS Input | Number | 1*1PPS | |
| Mode | for Single Frequency Network(SFN) | ||
| Connector | BNC interface, 75 Ω | ||
| Modulation | |||
| Standard | DVB-T (EN300 744) | ||
| FFT | 2K, 4K, 8K | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||
| Bandwidth | 2M, 5M, 6M, 7M, 8M | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| TPS Signal | DVB-T | ||
| Hierarchical Modulation | None, Alpha1, Alpha2 & Alpha4 | ||
| Digital Pre-Distortion(DPD)(optional) | |||
| Linear DPD | able to adjust non-flatness by over 10dB | ||
| Non-Linear DPD | able to adjust ACPR by over 10dB | ||
| Output | |||
| RF Output | Number | 1*RF Output | |
| Frequency Range | 30~960 MHz, successionally adjustable, in 1Hz stepping | ||
| Output Attenuation | -26 dB~+3 dB, in 0.1 dB stepping | ||
| MER | ≥42 dB | ||
| Reflection Loss | >15 dB | ||
| I/Q Range Balancing | <0.05% | ||
| I/Q Phase Error | <0.05° | ||
| Signal Stability | ±0.5 dB | ||
| Shoulder & Spurious Rejection | >52 dB | ||
| Spurious | >55 dB(relative to power of all signals) | ||
| Connector Type | 50Ω, N interface | ||
| 1*I0MHz Reference Clock Loop Out | |||
| 1*GPS 1PPS Loop out | |||
| Management | |||
| Remote Control | by SNMP | ||
| Local Control | LCD and keyboard on front panel | ||
| Upgrading | by network | ||
| Language | English | ||
| General | |||
| Voltage | 110~220V AC, 50/60Hz | ||
| Consumption | 25 W | ||
| Environment | 0~45°C (Operation), -20~80°C (Storage) | ||
| Dimension (W*D*H) | 440*414*44 mm | ||
| Net Weight | 5.0 KGS | ||

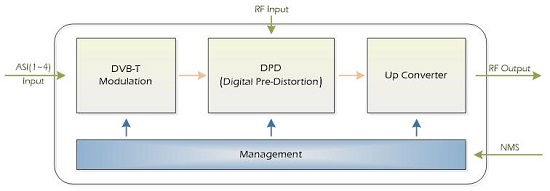

Diagram
