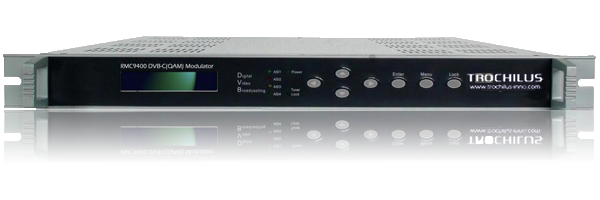

RMC9400 DVB-C(QAM) Modulator
Features
- Standard of DVB-C, EN300 429 / ITU-T J.83A; GB/T170
- Input with 1*Tuner and 2*ASI and output with 1*RF by QAM modulation
- DVB-S, DVB-S2, DVB-C optional for Tuner input
- Constellation of modes 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- RF output frequency in range 48~860MHz
- RS encoding and convolution interlacing for TS
- Excellent performance of output frequency attenuation
- Synchronously support PID filtering, re-mapping and PSI/SI updating
- Function of NIT insertion
- Low latency, and effective bit rate monitoring
- Easy operation and upgrading by keyboard or LCD
- Remote control by NMS
- Upgrading by Ethernet interface
Instruction
RMC9400 is a professional and high-integrated QAM modulator, with additional re-multiplexing functions for its Tuner and ASI inputs. It is able to accept 1*RF in DVB-S, DVB-S2 or DVB-C mode, multiplexing it with input TS from 2*ASI with SPTS or MPTS. Afterward, the device process the signals by RS encoding, interleaving and QAM modulation. It satisfies a basic QAM modulation function of TS from diversified encoders, multiplexers, scramblers, video servers, DVB gateways and so on, in a stable and mature performance. Due to its multiple configurations and functions, RMC9400 is a professional and independent digital satellite receiver and TS multiplexer at the same time. It has been widely applied to digital TV broadcasting, news gathering, interactive services, broadband satellite systems, and so on.
Specifications
| Tuner Input & Demodulation | ||
| Number | 1*Tuner+1*Tuner(Loop out) | |
| Connector Type | F type, 75Ω | |
| DVB-S(QPSK) Input | Frequency Range | 950 ~ 2150 MHz |
| LNB | 13V/18V | |
| Constellation | QPSK | |
| Roll-off Factor | 0.2, 0.25, 0.35 | |
| Symbol Rate | 2 ~ 45 Mbaud/s | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-S2(QPSK, 8PSK) Input | Frequency Range | 950 ~ 2150 MHz |
| LNB | 3V/18V | |
| Constellation | QPSK | |
| Roll-off Factor | 0.2, 0.25, 0.35 | |
| Symbol Rate | 1~45 Mbaud/s | |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Pilot | ON/OFF | |
| DVB-C(QAM) Input | Standard | ITU-T J.83A |
| Frequency Range | 168 ~ 858 MHz | |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 356QAM | |
| Symbol Rate | 1.0 ~ 7.0 Mbaud/s | |
| TS Input | ||
| Number | 1*ASI+1*ASI(back-up) | |
| Standard | EN50083-9 | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75Ω, BNC interface | |
| Re-Multiplexing | ||
| Re-Multiplexing Tuner input with external ASI(SPTS or MPTS) in | ||
| Automatic or manual operation of PID re-mapping | ||
| PCR correction, automatic generation of PSI/SI table | ||
| Modulation | ||
| Standard | DVB-C(QAM), EN300 429 / ITU-T J.83A, GB/T170 | |
| QAM Channel Qty. | 1 channel | |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Symbol Rate | 1.0~7.0 Msps, successionally adjustable by 1Ksps stepping | |
| FEC | RS(204, 188) | |
| RF Output | ||
| RF Range | 48~860MHz, by 10KHz stepping | |
| RF Out Attenuation | -11 dBm ~ +5 dBm, by 0.5 dB stepping | |
| Output Return Loss | >10 dB | |
| Phase Jitter | <0.5ºRMS | |
| Spurious Rejection | >55 dB | |
| MER | >33 dB | |
| C/N | >45 dB | |
| Connector | F type, 75Ω | |
| Management | ||
| Remote Control | by NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by Ethernet software | |
| Language | English | |
| General | ||
| Voltage | 110~220V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*455*44 mm | |
| Net Weight | 6.0 KGS | |

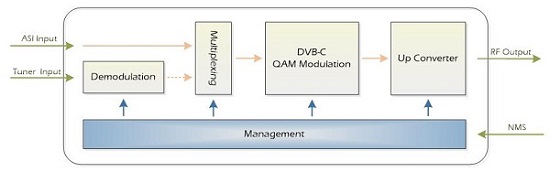

Diagram
