RMA9030 ATSC-T Modulator
Features
- Standard of ATSC A/53
- ATSC 8VSB modulation
- RS coding, interleaving and Trellis coding adopted
- Input with 2*ASI, 2*SMPTE 310M, & 1*Tuner
- Configured with 1*GPS 10MHz reference clock in and loop out
- Adoption of adaptive linear and non-linear Digital Pre-Distortion(DPD) technologies
- Frequency stability is able to reach 0.1PPM with constant-temperature crystal oscillator
- Easy-operation by LCD and keyboard on front panel
- Management by SNMP/NMS
Instruction
RMA9030 ATSC-T Modulator adopts several advanced functions and technologies, based on its fundamental module. It adopts Linear Digital Pre-Distortion and Non-Linear Digital Pre-Distortion, with which Adjacent Channel Power Ratio(ACPR) is able to be well improved. Fully compliant to standard ATSC A.53, the device supports both ASI and SMPTE-310M inputs, and then modulate them in ATSC 8VSB. It outputs 1* RF signal range 40~960MHz. RMA9030 additionally has 1*GPS 10MHz reference clock input, and its frequency stability reaches to 0.1PPM by configuring constant-temperature crystal oscillator. The device is widely applied to digital broadcasting systems of ATSC-T standard.
Specifications
| Input | ||
| TS Input | Number | 2*ASI, hot backup supported |
| Standard | EN 50083 ASI | |
| Mode | byte or burst | |
| MPEG Frame | 188/204 byte | |
| Bit Rate | ≤19.393 Mbps | |
| Connector | BNC interface, 75 Ω | |
| SMPTE 310M Input | Number | 2*SMPTE 310M, hot backup supported |
| Connector | BNC interface, 75 Ω | |
| RF Input | Number | 1*RF |
| Mode | for Digital Pre-Distortion(DPD) | |
| Connector | BNC interface, 75 Ω | |
| GPS 10MHz clock Input | Number | 1*10MHz reference clock |
| Connector | BNC interface, 75 Ω | |
| Modulation | ||
| Standard | ATSC A/53 | |
| Constellation | 8VSB | |
| FEC | RS(208, 188) + Trellis | |
| Bandwidth | 6M | |
| Digital Pre-Distortion(DPD)(optional) | ||
| Linear DPD | able to adjust non-flatness by over 10dB | |
| Non-Linear DPD | able to adjust ACPR by over 10dB | |
| Output | ||
| RF Output | Number | 1*RF |
| Frequency Range | 40~960 MHz, successionally adjustable, in 1Hz stepping | |
| Output Attenuation | -26 dB~+3 dB, in 0.1 dB stepping | |
| MER | ≥42 dB | |
| Signal Stability | ±0.5 dB | |
| Shoulder | ≥48 dB | |
| Spurious | ≥50 dB | |
| Connector Type | 50Ω, N interface | |
| 1*I0MHz Reference Clock Loop Out | ||
| Management | ||
| Remote Control | by SNMP/NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by network | |
| Language | English | |
| General | ||
| Voltage | 110~220V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*455*44 mm | |
| Net Weight | 6.0 KGS | |

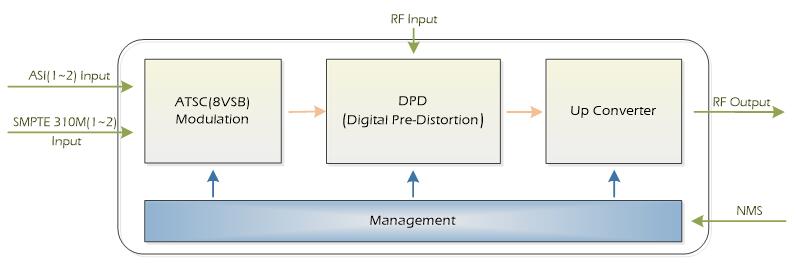

Diagram
