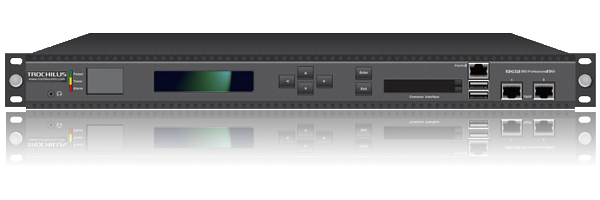

RIH1318 HD Professional IRD
Features
- Multiple Tuner input mode available for DVB-T/T2, DVB-S/S2, DVB-C, DTMB, additional with DS3/E3, IP and ASI
- Support DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T SFN MIP pass through
- SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
- 4:2:2 optional for SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
- Up to 8*audio PID decoding or pass through (compressed) for SDI output
- Up to 6*audio PID decoding or pass through (compressed) for AES output
- Diversified choices of output interfaces, including HDMI, SD/HD-SDI, IP, CVBS, ASI, AES/EBU
- 2*DVB-CI slots for multi-program decryption
- BISS-1 and BISS-E decryption modes supported
- TELETEXT, EBU/DVB Subtitle VBI, Closed Caption (CC) supported
- Dynamic PMT detection and automatic upgrading
- IP output in UDP/RTP, duplex with MPTS/SPTS out, unicast/multicast available
- Alarm Relay with D-sub 9 male connector
- RSSI, received Eb/No & BER monitoring
- Monitoring LCD screen on front panel
- Dual power supply, hot-swappable
- Monitoring working state by network system
- Software upgrading through IP
- Easy-operation by LCD and keyboard on front panel
Instruction
RIH1318 HD Professional IRD is a high-integrated signal processor with multiple interfaces and functions. It supports Tuner input with DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T, ATSC-T or DTMB standard. With 2CI slots, the device is able to accept variety of common CA, and decrypt with unique digital decoding technology and PCMCIA interfaces. Adopted with MPEG-2, MPEG-4 AVC/H.264 SD/HD video decoding standards, RIH1318 can return input signals to digital and analog signals in abundant ports, such as SDI, HDMI, CVBS, AES/EBU, XLR, etc.. It can output max. 8audio PID track or pass through, which satisfies applications for multiple audio tracks in great value. The device is also able to output via IP(UDP/RTP, 1000M) in simplex or duplex mode. The design and integrated functions of demodulation, descrambling, de-multiplexing, decoding, re-multiplexing and TSoverIP processing, make RIH1318 a powerful and high-performance device, which is an ideal choice for all kinds of digital TV head-end applications.
Specifications
| Tuner Input | ||
| DVB-C Mode | Connector Type | 1*F type female, 75Ω for input; 1*F type female, 75Ω for loopout |
| Input Frequency | 51 ~ 862 MHz | |
| Input Level | 51 ~ 75 dBuv | |
| Symbol Rate | 1~7 Mbaud | |
| Constellation | 16/32/64/128/256 QAM | |
| Bandwidth | 6 MHz / 7 MHz / 8 MHz | |
| DVB-S/S2 Mode (ISI Factory Optional) | Connector Type | 1*F type female, 75Ω for input; 1*F type female, 75Ω for loopout |
| Input frequency | 950 ~ 2150 MHz | |
| Symbol Rate | 2 ~ 45 MBaud | |
| Input Level | -65 ~ -25 dBm | |
| Roll-off Factor | (DVB-S, QPSK) 0.35; (DVB-S2, 8PSK) -0.35, 0.25, 0.2 |
|
| FEC Code Rate | (DVB-S QPSK) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-S2 QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10; (DVB-S2 8PSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
|
| LNB Polarity Voltage | 0, 13V, 18V optional | |
| LNB Band Tone | 0/22KHz optional | |
| Satellite Command | DiSEqC 1.0 | |
| ISI ID | 1 ~ 255 user configurable | |
| DVB-T/T2 Mode | Connector Type | 1*F type female, 75Ω for input; 1*F type female, 75Ω for loopout |
| Input frequency | 104~862MHz | |
| Input Level | -70~-20dBm | |
| Bandwidth | 6/7/8MHz | |
| FFT Mode | (DVB-T) 2k/8k; (DVB-T2) 1K, 2K, 4K, 8K, 16K, 32K |
|
| Constellation | (DVB-T) QPSK, 16QAM, 64QAM; (DVB-T2) QPSK, 16QAM, 64QAM, 256QAM |
|
| Guarding Interval | (DVB-T) 1/4, 1/8, 1/16, 1/32; (DVB-T2) 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 |
|
| FEC Code Rate | (DVB-T) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-T2) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
|
| Input Return Loss | 7dB | |
| ATSC Mode (Under Test) | Connector Type | 1*F type female, 75Ω for input; 1*F type female, 75Ω for loopout |
| Input frequency | 54~864MHz | |
| Input Level | -70~-7dBm | |
| Symbol Rate | 10.762MBaud | |
| Constellation | 8VSB | |
| Roll-off Factor | 0.115 | |
| Bandwidth | 6MHz | |
| DTMB Mode (Under Test) | Connector Type | 1*F type female, 75Ω for input; 1*F type female, 75Ω for loopout |
| Input frequency | 46.5 ~ 866 MHz | |
| Input Level | -87 ~ -29 dBm | |
| Symbol Rate | 7.56MBaud | |
| Bandwidth | 6 MHz / 7 MHz / 8 MHz | |
| Constellation | 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM | |
| Guard Interval | PN420, PN595, PN945 | |
| Roll-off Factor | 0.05 | |
| Interleaving Depth | 240, 720 | |
| FEC Code Rate | 0.4, 0.6, 0.8 | |
| IP Input | ||
| Protocols | TS over IP, UDP/RTP, IGMPV3 ARP | |
| Bit-Rate | 800Mbps for 100/1000 Base-T, duplex for SPTS and MPTS | |
| Connector Type | 2*RJ45, 100/1000M Base-T | |
| Mode | Unicast/Multicast | |
| ASI Input | ||
| Connector Type | 1 or 2 ASI, BNC, 75Ω | |
| Standard | DVB-ASI, EN50083-9 | |
| Bit Rate | ≤100Mb/s | |

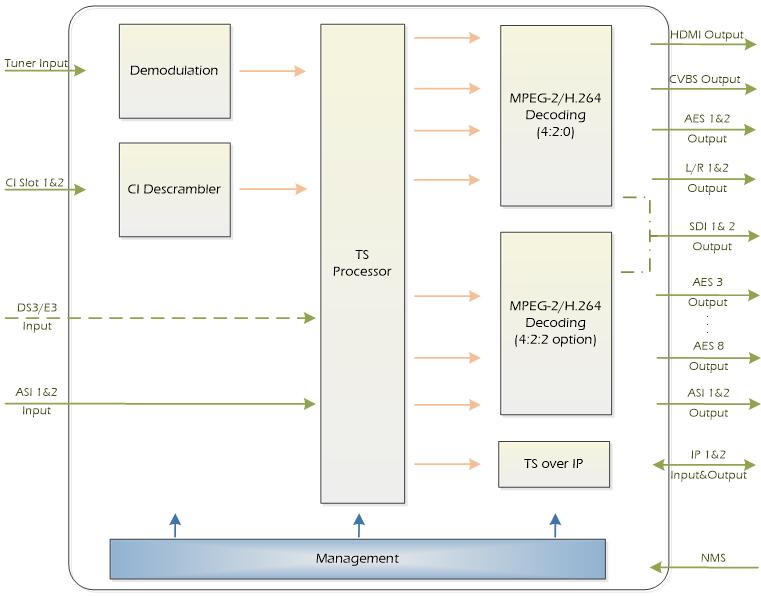

Diagram
