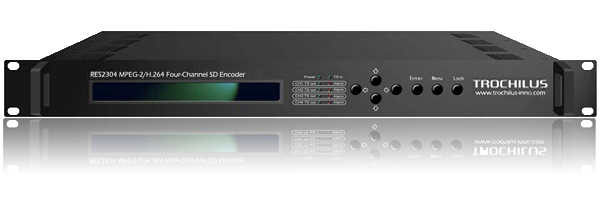

RES2308/RES2304 MPEG-2/H.264 SD Encoder

• Video compression: MPEG-4 AVC/H.264, MPEG-2
• Audio compression: MPEG-1 Layer II, LC-AAC, and HE-AAC(v2)
• Video input interface: 8*CVBS, or 8*SD-SDII
• Audio input interface: 8*unbalanced stereo L/R, or 8*SD-SDI embeddedI
• PAL/NTSC modes available
• Providing ASI and IP (UDP) output
• Equipped with empty packets filtering of IP out
• Able to multiplex local signals with external TS from ASI input
• 1*MPTS or 1*MPTS/8*SPTS IP out optional
• Multi-pass LookAhead CBR or VBR encoding
• Built-in PCR capability
• Low latency, low bit rate performances
• Providing PSI/SI compilation and NIT, LCN insertion
• Easy operation and upgrading by keyboard or LCD
• SNMP or WEB management for control
• Upgrading by Ethernet interface

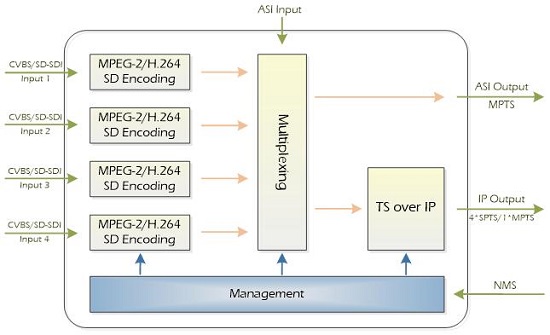

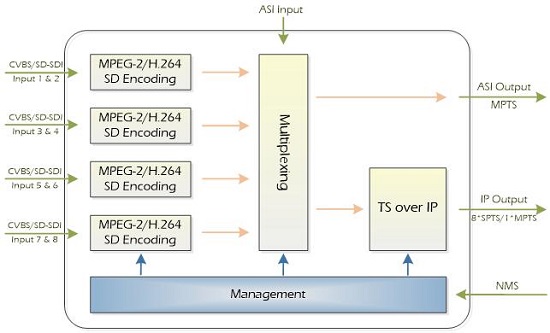

Integrated with MPEG-2 and MPEG-4 AVC/H.264 compression formats, RES2308/RES2304 Eight/Four-Channel MPEG-2/H.264 SD Encoder realizes multi-function and powerful operations of SD encoders. Flexible designs and configurations of inputs, 8/4*CVBS, or 8/4*SD-SDI, provides more options for diversified applications in a cost-effective way. The device supports MPEG-1 Layer II, LC-AAC and HE-AAC audio compression formats, with 8/4*unbalanced stereo LR or 8/4*SD-SDI embedded for options. RES2308/RES2304 offers an additional ASI input interface, making input local programs to be multiplexed with its SPTS or MPTS signals. This feature makes it more powerful, functional and not only limited as an encoder. RES2308/RES2304 performs well in ultra-low bit rate and low latency for each channel. The device outputs with ASI and TSoIP(in 1*MPTS or 8/4*SPTS, UDP protocol), to meet variety of needs in digital TV industry, such as IPTV, DTV broadcasting head-end systems, and so on.
