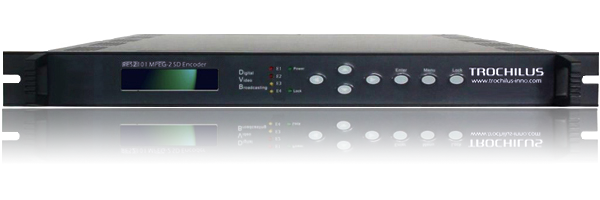

RES2101 MPEG-2 SD Encoder
Features
- Video compression: MPEG-2 SD, adopting advanced video pre-processing algorithms
- Audio compression: MPEG-1 Layer II
- PAL/NTSC SD modes available
- Multiple options for input: analog video by CVBS and S-Video, digital video by SD-SDI
- Multiple options for audio input: AES-EBU, SD-SDI, balanced and unbalanced stereo(XLR and LR)
- Providing ASI and IP (UDP) output, unicast/ multicast supported
- Equipped with empty packets filtering of IP out
- Multi-pass LookAhead CBR or VBR encoding
- Dynamic GOP automatic management
- Web NMS management and operation
- Easy operation and upgrading by keyboard or LCD
Instruction
RES2101 MPEG-2 Single-Channel SD Encoder is a professional and basic broadcasting device for audio and video compression. It can work on digital audio and video signals, as well as traditional analog ones. Configured with CVBS, SD-SDI and S-Video video input ports, unbalanced stereo L/R & balanced stereo XLR for analog audio, and AES/EBU & embedded SD-SDI for digital, it provides different choices for different applications with a same device. RES2101 adopts standard MPEG-2 SD video and MPEG-1 Layer II audio encoding, performing well in ultra-low bit rate and low latency with advanced processing algorithms. The device outputs with ASI and TSoIP(in 1*SPTS), to meet variety of needs in digital TV industry, such as IPTV, DTV broadcasting head-end systems, distribution and contribution systems, etc.. Its easy-operating design, high and unrivaled performances, multi-functions, bring users with satisfying experiences.
Specifications
| Video Compression | ||
| Video Compression | MPEG-2 SD, 4:2:0 MP@ML | |
| Video Input | 1*CVBS, 1*YPbPr, 1*SDI | |
| Analog Video Mode | PAL, NTSC | |
| Resolution | 720*480_59.94i, 720*576_50i | |
| Bit-rate | 0.8~19.5 Mbps, CBR/VBR | |
| GOP | IIII, IPPP, IBPB, IBBP | |
| Video Pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II | |
| Audio Input | 1*unbalanced stereo L/R, 1*balanced stereo XLR, 1*digital AES/EBU, 1*SD-SDI(embedded) | |
| Sampling Rate | 48 KHz, 44.1KHz, 32KHz | |
| Sampling Accuracy | 24-bit | |
| Bit-Rate | 64Kbps~384Kbps | |
| Input | ||
| Video | 1*CVBS, 1*SDI, BNC interface; 1*S-Video | |
| Audio | 1*unbalanced stereo L/R, BNC interface; 1*balanced stereo XLR; 1*digital AES/EBU, 1*SD-SDI(embedded) | |
| ASI | 1*ASI+1*ASI(for backup), BNC interface | |
| Output | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP/RTP protocol |
| IP Output Channel | 1*SPTS | |
| Mode | unicast, multicast | |
| Connector Type | RJ45, 10/100M | |
| Support empty packets filtering | ||
| E1 Output | Optional | |
| Management | ||
| Connector | 1*RJ-45, 10/100 Base-T (NMS interface) | |
| Remote Control | by NMS or Web NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by Ethernet software | |
| Language | English | |
| General | ||
| Voltage | 110~240V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*455*44 mm | |
| Net Weight | 4.0 KGS | |

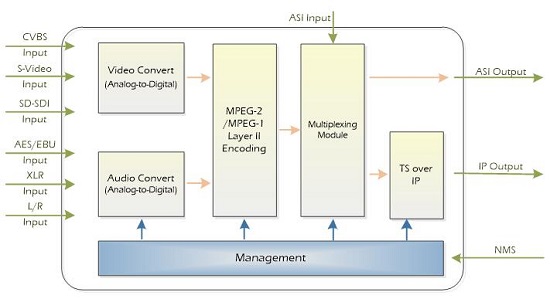

Diagram
