REM7502 HDMI to DVB-C/T 4K Encoder Modulator

Features

Integrated with video/audio encoding and modulation modules in one unit
Video compression: H.265 HEVC/H.264
Standard of modulation in DVB-C or DVB-T mode
Input with 1*HDMI(2.0) and 1*HDMI(2.0) loop out, 2*ASI and IP(128*MPTS/SPTS, UDP/RTP)
HDCP 2.2 and HDCP 1.4 supported
Input up to 2160P 60Hz RGB/YCbCr 4:4:4
Support HDCP 2.2 and HDCP 1.4
Video resolution upscale transform (1080P to 4K)
Audio compression in MPEG1 Layer II, LC-AAC and DD AC3 passthrough
DVB-T/DVB-C RF output
IP output 4*MPTS, UDP /RTP (1000M)
PID remapping, accurate PCR adjustment, PSI/SI edit and insertion
Real-time output
Easy-operation by LCD and keyboard on front panel
Network upgrading by NMS and http web network management supported

Instruction

REM7502 HDMI to DVB-T/DVB-C 4K Encoder Modulator offers a professional and high-integrated modulator, together with multiplexing, encoding, re-multiplexing and modulation functions. The device accepts HDMI UHD signals and compresses in H.265 HEVC or H.264(MPEG-4 AVC), and modulates in DVB-C or DVB-T. It is also able to input with IP and ASI signals for multiplexing. This new item meets the coming needs and requests on UHD 4K ages. It can be widely applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.

Specifications

Video Compression
Video Compression	H.265 HEVC, MPEG-4 AVC/H.264
Video Input	HDMI
Resolution	38402160_60P, 38402160_59.94P, 38402160_50P, 38402160_30P, 38402160_29.96P, 38402160_25P, 38402160_24P, 19201080_60P, 19201080_59.94P, 19201080_50P, 19201080_30P, 19201080_25P, 1920*1080_24P
Chroma	RGB, YCbCr 4:2:2; YCbCr 4:2:0(2160P_50/60Hz only)
Bit-rate	2 Mbps ~ 29 Mbps
Bit-rate Control	CBR
Audio Compression
Audio Compression	MPEG-1 Layer II, LC-AAC
Audio Input	HDMI
Sample Rate	48 KHz
Bit Rate	32~384 Kbps per channel
Input
Video Input	1HDMI (2.0) + 1HDMI (2.0) loop out, HDCP 2.2/1.4
Audio Input	1*HDMI
ASI Input	Number	1ASI+1ASI(backup)
ASI Input	Connector Type	BNC interface, 75Ω
IP Input	Number	32*TS over IP, RJ45
	Protocol	UDP/RTP
	Mode	MPTS/SPTS
Multiplexing
2*ASI input multiplexed with one local TS channel
PID remapping(auto/manually), accurate PCR adjustment
Auto PSI/SDI table generation
Scrambling
CA	Up to 4*simulscrypt CA
Standard	ETR289, ETSI 101 197, ETSI 103 197
Modulation
DVB-T Mode	Standard	DVB-T (EN300 744, COFDM)
	Output Channel	Single Carrier
	Constellation	QPSK, 16QAM, 64QAM
	Bandwidth	6M, 7M, 8M
	FFT	2K, 4K, 8K
	Guard Interval	1/32, 1/16, 1/8, 1/4
	FEC	1/2, 2/3, 3/4, 5/6, 7/8
	MER	≥42 dB
	Frequency Range	50 ~ 960 MHz, in 1 KHz stepping
	Output Level	-28 ~ -3 dBm(77~97 dbμV), by 0.1 dB stepping
		RF Out	1*DVB-T
DVB-C Mode	Standard	J.83A , J.83B
	Output Channel	Single Carrier
	Constellation	J.83A: 16 / 32 / 64 / 128 / 256 QAM (8M); J.83B: 64 / 256 QAM (6M)
	Symbol Rate	5.000~7.000 Msps
	MER	≥43 dB
	Frequency Range	50 ~ 960 MHz, in 1 KHz stepping
	Output Level	-25 ~ -1 dBm(77~97 dbμV), by 0.1 dB stepping
	RF Out	1*DVB-C
Output
RF Output	Number	1DVB-T or 1DVB-C Output
IP Output	Number	1*IP, RJ45, 1000M/100M Base-T Ethernet
IP Output	Mode	MPTS(unitcast/multicast)
ASI Output	Number	1*ASI(through 4 ports, BNC)
ASI Output	Connector Type	75Ω, BNC interface
Management
Remote Control	by web NMS
Local Control	LCD and keyboard on front panel
Upgrading	by network
Language	English
General
Voltage	100~240V AC, 50/60Hz
Power Consumption	25 W
Environment	0~45°C (Operation), -20~80°C (Storage)
Dimension (WDH)	48246044 mm
Net Weight	4.5 KGS

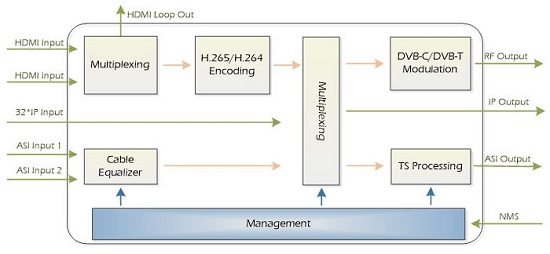

Diagram
