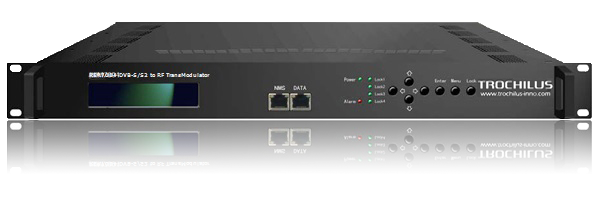

REM7004 Four-Channel DVB-S/S2 to DVB-C/DVB-T TransModulator
Features
- Integrated with demodulation, trans-multiplexing, and modulation modules in one unit
- Up to 4*QPSK/8PSK DVB-S/S2 inputs
- 4*CI slot configured, with each able to decrypt multiple programs
- ASI input for re-multiplexing available
- RF in additionally available, for mixing
- 1 or 2*adjacent DVB-T, or 1 or 4*DVB-C out
- ASI and IP(100M, UDP) output available
- LCN(Logical Channel Number) supported
- Good performance in modulation quality
- Easy-operation by LCD and keyboard on front panel
- Network upgrading by NMS and http web network management supported
Instruction
REM7004 4*DVB-S/S2 to DVB-C/DVB-T TransModulator offers a professional and high-integrated modulator, together with demodulation, re-multiplexing and modulation functions. The device is able to accept 4 satellite signals in DVB-S/S2, demodulate and re-multiplex them with additional ASI in or/and RF(DVB-C, DVB-T, ISDB-T or ATSC) in. The device then modulates signals in DVB-T(in 1 or 2 adjacent carriers) or DVB-C(in 1 or 4 adjacent carriers). Due to its professional and full functions, REM7004 has been widely applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.
Specifications
| Tuner Input | |||
| DVB-S/S2 Input | Demodulation Mode | QPSK, 8PSK | |
| Input Frequency | 950~2150MHz | ||
| Symbol Rate | 2~45Msps | ||
| FEC | DVB-S(QPSK): 1/2, 2/3, 3/4, 5/6, 7/8; DVB-S/S2(QPSK, 8PSK): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
| Input | |||
| DVB-S/S2 Tuner Input | Number | 4*DVB-S/S2 | |
| Connector Type | F interface, 75Ω | ||
| ASI Input | Number | 1*ASI, for re-multiplexing | |
| Connector Type | BNC interface, 75Ω | ||
| Tuner Input | 1*Tuner, F interface, 75Ω | ||
| DVB-C/ DVB-T /ISDB-T/ATSC tuner in compatible, for mixing | |||
| Modulation | |||
| DVB-T Mode | Standard | DVB-T (EN300 744, COFDM) | |
| Output Channel | Single/Dual Carriers | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| Bandwidth | 6M, 7M, 8M | ||
| FFT | 2K, 8K | ||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| MER | ≥42 dB | ||
| Frequency Range | 30 ~ 960 MHz, in 1 KHz stepping | ||
| Output Level | -30 ~ -10 dBm(81~97 dbμV), by 0.1 dB stepping | ||
| RF Out | 1*DVB-T frequency or 2*DVB-T adjacent frequencies | ||
| DVB-C Mode | Standard | J.83A , J.83B, J.83C | |
| Output Channel | Single/Four Carriers | ||
| Constellation | J.83A: 16 / 32 / 64 / 128 / 256 QAM (8M); J.83B: 64 / 256 QAM (6M); J.83C: 64 / 256 QAM (6M) | ||
| Symbol Rate | 5.000~9.000 Msps | ||
| MER | ≥42 dB | ||
| Frequency Range | 30 ~ 960 MHz, in 1 KHz stepping | ||
| Output Level | -30 ~ -10 dBm(81~97 dbμV), by 0.1 dB stepping | ||
| RF Out | 1*DVB-C frequency or 4*DVB-C adjacent frequencies | ||
| Output | |||
| RF Output | Number | 1*RF(1 or 2*adjacent DVB-T, 1 or 4*adjacent DVB-C) | |
| Connector Type | 75Ω, F interface | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) | |
| Standard | EN50083-9 | ||
| Output Loss | >10 dB | ||
| Connector Type | 75Ω, BNC interface | ||
| IP Output | Number | 1*TS over IP, 1*MPTS | |
| Protocol | UDP, unicast/multicast | ||
| Connector Type | RJ45, 10/100M | ||
| Support empty packet filtering | |||
| Management | |||
| Remote Control | by NMS | ||
| Local Control | LCD and keyboard on front panel | ||
| Upgrading | By Ethernet interface | ||
| Language | English | ||
| General | |||
| Voltage | 100~240V AC, 50/60Hz | ||
| Power Consumption | 25 W | ||
| Environment | 0~50°C (non-condensing) | ||
| Dimension (W*D*H) | 410*460*44 mm | ||
| Net Weight | 4.5 KGS | ||
Diagram
