REH53XX 12/8/4-Channel H.265/H.264 HD Encoder
Features
> Video compression: HEVC/H.265, H.264(MPEG-4 AVC) HD/SD
> Audio compression: MPEG1 Layer II, LC-AAC and HE-AAC(V1&V2), DD AC3 pass through
> IP(UDP, RTP, RTSP, RTMP, HTTP, HLS) output
> Equipped with empty packets filtering of IP out

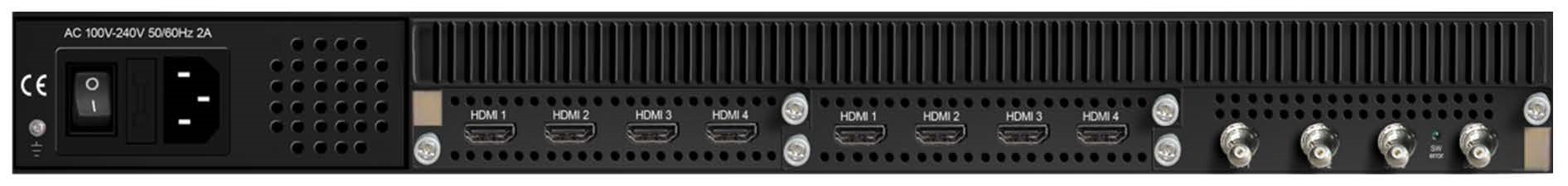

> Input interface: HDMI, SDI
> 3 pluggable slots with different encoding modules (HDMI or SDI) optional
> Up to 12 HD programs input
> Logo, QR code insertion optional
> Web management for remote control and centralized management, upgrading via USB port
Instruction
REH53XX 12/8/4-Channel H.265/H.264 HD Encoder is a device designed in low latency, excellent performance and low bit rate, for audio & video compression, for digital TV head-end system. Adopted with HEVC/H.265, H.264(MPEG-4 AVC) and MPEG-1 Layer II, HE-AAC & LC-AAC, DD AC3 pass through, the device is equipped with max. 12/8/4*HDMI/SDI, and output to be IP, UDP (SPTS) (Unicast/Multicast), RTP (Unicast/Multicast), RTSP (Unicast), RTMP (Unicast), HTTP(Unicast), HLS (Unicast).
Specifications

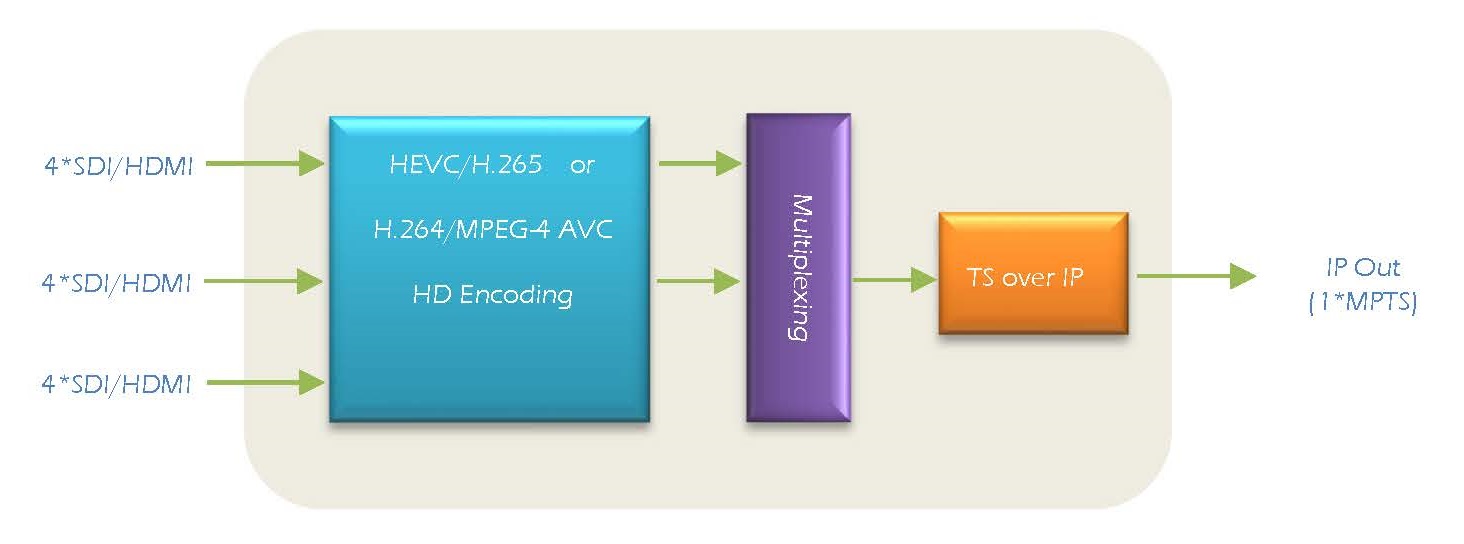

Diagram
