• Compliant with standard DVB-C(EN300 429) and ITU-T J.83A/B/C
• DVB common scrambling system (ETR289) supported, simulcrypt standards of ETSI 101 197 and ETSI 103 197
• Input with 16*ASI, 4*ASI or 8*Tuner by option
• Four channels multiplexing, four channels scrambling, and four channels QAM modulating
• IP output configured with Gigabit Ethernet interface(1000M)
• Providing PSI/SI compilation and NIT, LCN insertion
• Built-in PCR capability
• Max. 4 different CAS systems supported simultaneously
• RF output performance index, MER>40dB
• Monitoring working situation by network system
• Easy-operation by LCD and keyboard on front panel

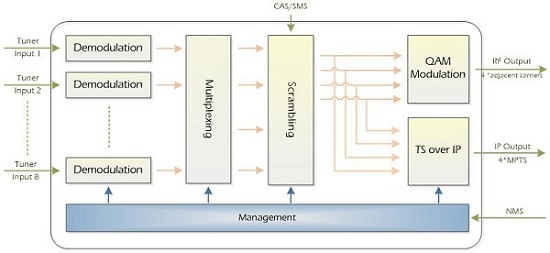

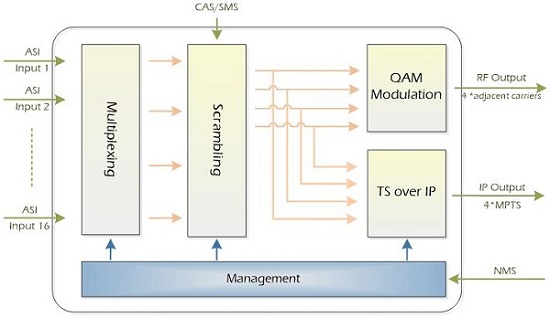

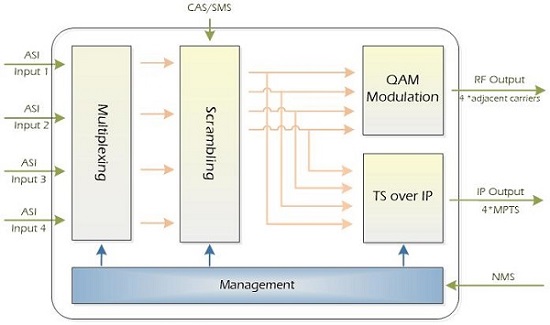

RTS4504(/RTS4508/RTS4516) Four-Channel Mux-Scrambling QAM Modulator is a QAM modulator acting in high performance. It provides 4*ASI, 8*Tuner or 16*ASI input interfaces, and output with 4*RF, each able to be with 4*adjacent frequencies, and together with 1*IP of Gigabit Ethernet. Apart from modulation function as a modulator, it is configured with multiplexing and scrambling modules, which make it capable of multiplexing all or part of program streams independently for each channel. PSI/SI compilation, LCN insertion and EIT multiplexing functions are also available with this unit. It is characterized with high integration, high performance and competitive cost, all of which make the device adopted and applied more and more especially in new generation of CATV broadcasting, contribution and distribution systems.
