IMS928 Eight-Channel IP Mux-Scrambler Module
FEATURES
- DVB scrambling standard in ETR289, and simulcrypt standards in ETSI 101 197& ETSI 103 197
- 1GigE Input, RJ45 interface or SFP
- Max. 256 channels TS over UDP, MPTS/SPTS Input, unicast/multicast
- Up to 840Mbps for all inputs, 108Mbps per channel
- MPEG-2 / MPEG-4 AVC re-multiplexing, and MPTS/SPTS multiplexing available
- Accurate PCR adjusting
- Synchronously support PID filtering, re-mapping(max. 180 PIDs) and PSI/SI edit
- Support max. 8-channel scrambling, each channel with 4 simulcrypt CA simultaneously
- Dual power supply
- Remote control by NMS/SNMP
- Upgrading by Ethernet interface
INTRODUCTIONS
IMS928 Eight-Channel IP Mux-Scrambler Module is one of the latest developed devices by REGEN, which integrated with multiplexing and scrambling functions at the same time. Each IMS928 daughter module can work independently, due to the combining of 8*multiplexing modules, and 8*scrambling modules. It supports up to 256-channel IP MPTS/SPTS (per daughter module) input with its GigE port and 8*IP output.This IMS928 IP Mux-Scrambler Module was designed in slot structure and being allowed of a maximum 3-module insertion into one device simultaneously. Its excellent and high integration, and powerful performance make it quite a good choice for the new generation digital TV system.
SPECIFICATIONS
| Input | |
| TS | 1*GE, RJ45 or SFP interface |
| Input Channel Qty. | 256 |
| Standard | EN 50083-9 ASI |
| Transport Protocol | TS over UDP, Unicast / Multicast, IGMP V2/V3 |
| Max. Bit-rate | 840Mbps for all inputs; 108Mpbs for each channel |
| Multiplexing | |
| Output Channel Qty. | 8 |
| Max. PIDs | 180 for each channel |
| Functions | PID remapping |
| PCR accurate adjusting | |
| Auto-generating of PSI/SI table | |
| Scrambling | |
| Max. simulscrypt CA | 4 |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| IP Output | |
| IP Output QTY. | 8 (1*GE, RJ45 or SFP interface) |
| Code Rate | 1~108Mbps per channel |
| IP Out Format | TS over UDP, Unicast/Multicast, IGMP V2/V3 |
| Management | |
| Network Control | by NMS/SNMP |
| Upgrading | by Ethernet software |
| Language | English |
| General | |
| Voltage | 110~220V AC, 50/60Hz |
| Consumption | 22 W |
| Environment | 0~45°C (Operation), -20~80°C (Storage) |
| Dimension (W*D*H) | 630*440*44.5 mm |
| Net Weight | 6 KGS |

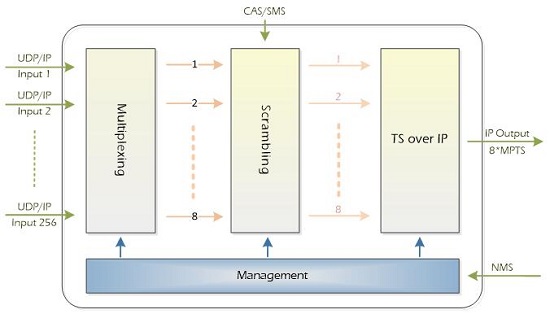

DIAGRAM
REAR PANEL
