HD/SD PROFESSIONAL IRD/DECODER

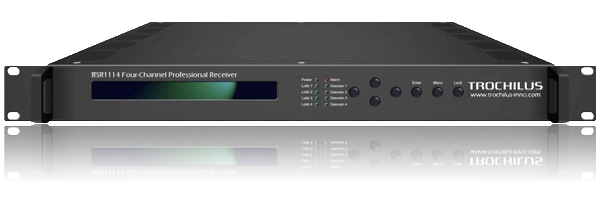

RSR1114 4CH Professional Receiver
FEATURES
-
Up to 4*Tuner input, modes in DVB-S/S2, DVB-T/T2, DVB-C
-
1*ASI and 4*IP(UDP, RTP/RTSP protocol) inputs, for Re-Multiplexing
-
Max. 4*DVB-CI slots, for multi-program decryption
-
Each CAM able to decrypt multiple programs from Tuners, ASI, or IP input
-
IP(4*MPTS/48*SPTS) on UDP and RTP/RTSP output
-
Unicast and multicast modes supported for IP output
-
Output 4 groups of independent ASI for tuner or IP each in mirror
-
Max. 128 PID mapping per input supported
-
Monitoring working situation by network system
-
Software upgrading through IP
-
Easy-operation by LCD and keyboard on front panel
INTRODUCTIONS
RSR1114 Four-Channel Professional Receiver is integrated with modules of demodulation and descrambling, together with a multiplexing module, to convert and multiplex the received RF signals to TS and output finally. It is configured with 4*Tuner inputs, and able to accept RF signals in DVB-C, DVB-T/T2 or DVB-S/S2 by option. 1*ASI and 1*IP(4 addresses) are also available for signal inputs for multiplexing. 4 CAM/CI slots are configured for descrambling of input programs from encrypted RF. When all converted and multiplexed, the device outputs with 4*ASI, which is corresponding with each of input RF or IP in mirror, and also IP out in max. 4*MPTS(in mirror of 4*tuner inputs), or 48*SPTS(from 4*tuner input & 4*IP input & 1*ASI input). This makes RSR1114 quite suitable and ideal for digital TV systems such as IPTV, etc..
SPECIFICATIONS
| Tuner Input | ||
| DVB-C Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Standard | J.83A/B/C | |
| Input Frequency | 47 ~ 860 MHz | |
| Input Level | 45 ~ 75 dBuv | |
| Symbol Rate | 1 ~ 7 Mbaud | |
| Constellation | 16/32/64/128/256 QAM | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| DVB-T/T2 Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Input Frequency | 44 ~ 1002 MHz | |
| Input Level | -70 ~ -20 dBm | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| FFT | 2K/8K | |
| DVB-S/S2 Mode | Connector Type | 4*F type female, 75Ω for input; 4*F type female, 75Ω for loop through output |
| Input Frequency | 950 ~ 2150 MHz | |
| Symbol Rate | 2 ~ 45MBaud (for DVB-S); 1 ~ 45 Mbaud (for DVB-S2, QPSK); 1 ~ 30 Mbaud (for DVB-S2, 8PSK) |
|
| Code Rate | (DVB-S, QPSK) 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S2, QPSK, 8PSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
| Input Level | -65 ~ -25 dBm | |
| Roll-off Factor | (DVB-S) 0.35; (DVB-S2) 0.35, 0.25, 0.2 |
|
| Input | ||
| ASI Input | Number | 1*ASI |
| Standard | DVB-ASI, EN50083-9 | |
| Input Bit-Rate | ≤49Mbps | |
| Connector Type | 1*BNC female, 75Ω | |
| IP Input | Number | 4*IP addresses |
| Connector Type | RJ45, 10/1000M Base-T | |
| Protocol | UDP, RTP/RTSP | |
| Bit-Rate | ≤70Mbps | |
| DVB-CI Module | ||
| Descrambling Processing | DVB-CAS | |
| Smart Card Interface | ISO7816 | |
| Interface Card Separation | PCMCIA | |
| Output | ||
| ASI Output | Number | 4*ASI (corresponding with 4*tuner/4*IP inputs, in mirror) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 54 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP, RTP/RTSP protocol |
| Mode | Unicast and multicast | |
| Connector Type | RJ45, 10/1000M Base-T | |
| Output Channel | 48*SPTS (from 4*Tuner & 4*IP & 1*ASI); 4*MPTS (corresponding with 4*Tuner, in mirror) |
|
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet interface | |
| Remote Control | by web NMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.0 KGS | |

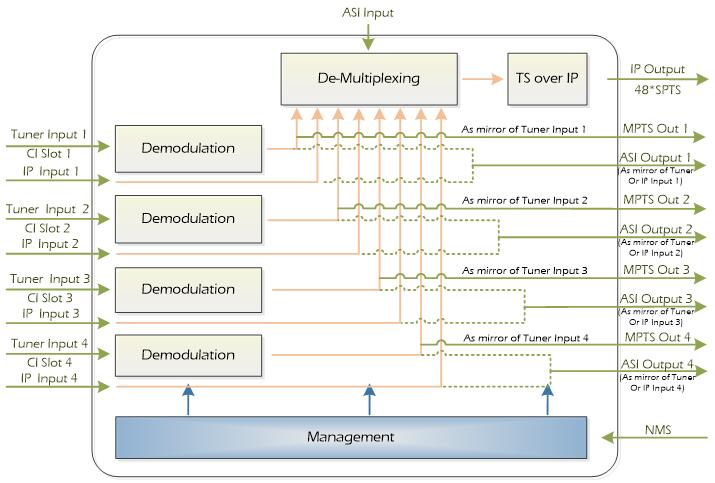

DIAGRAM
