HD/SD PROFESSIONAL IRD/DECODER

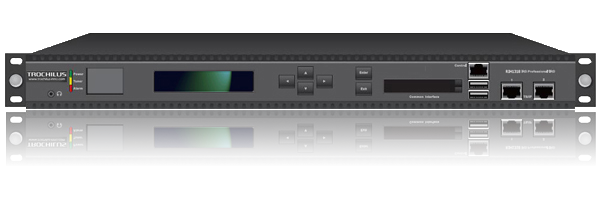

RIH1318 HD Professional IRD

HD/SD TRANSCODER

FEATURES

  • Multiple Tuner input mode available for DVB-T/T2, DVB-S/S2, DVB-C, DTMB, additional with DS3/E3, IP and ASI
  • Support DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T SFN MIP pass through
  • SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • 4:2:2 optional for SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • Up to 8*audio PID decoding or pass through (compressed) for SDI output
  • Up to 6*audio PID decoding or pass through (compressed) for AES output
  • Diversified choices of output interfaces, including HDMI, SD/HD-SDI, IP, CVBS, ASI, AES/EBU
  • 2*DVB-CI slots for multi-program decryption
  • BISS-1 and BISS-E decryption modes supported
  • TELETEXT, EBU/DVB Subtitle VBI, Closed Caption (CC) supported
  • Dynamic PMT detection and automatic upgrading
  • IP output in UDP/RTP, duplex with MPTS/SPTS out, unicast/multicast available
  • Alarm Relay with D-sub 9 male connector
  • RSSI, received Eb/No & BER monitoring
  • Monitoring LCD screen on front panel
  • Dual power supply, hot-swappable
  • Monitoring working state by network system
  • Software upgrading through IP
  • Easy-operation by LCD and keyboard on front panel

  INTRODUCTIONS

RIH1318 HD Professional IRD is a high-integrated signal processor with multiple interfaces and functions. It supports Tuner input with  DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T, ATSC-T or DTMB standard. With 2*CI slots, the device is able to accept variety of common CA, and decrypt with unique digital decoding technology and PCMCIA interfaces. Adopted with MPEG-2, MPEG-4 AVC/H.264 SD/HD video decoding standards, RIH1318 can return input signals to digital and analog signals in abundant ports, such as SDI, HDMI, CVBS, AES/EBU, XLR, etc.. It can output max. 8*audio PID track or pass through, which satisfies applications for multiple audio tracks in great value. The device is also able to output via IP(UDP/RTP, 1000M) in simplex or duplex mode. The design and integrated functions of demodulation, descrambling, de-multiplexing, decoding, re-multiplexing and TSoverIP processing, make RIH1318 a powerful and high-performance device, which is an ideal choice for all kinds of digital TV head-end applications.



  SPECIFICATIONS

Tuner Input
DVB-C Mode Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loopout
Input Frequency 51 ~ 862 MHz
Input Level 51 ~ 75 dBuv
Symbol Rate 1~7 Mbaud
Constellation 16/32/64/128/256 QAM
Bandwidth 6 MHz / 7 MHz / 8 MHz
DVB-S/S2 Mode
(ISI Factory Optional)		 Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loopout
Input frequency 950 ~ 2150 MHz
Symbol Rate 2 ~ 45 MBaud
Input Level -65 ~ -25 dBm
Roll-off Factor (DVB-S, QPSK) 0.35;
(DVB-S2, 8PSK) -0.35, 0.25, 0.2
FEC Code Rate (DVB-S QPSK) 1/2, 2/3, 3/4, 5/6, 7/8;
(DVB-S2 QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10;
(DVB-S2 8PSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
LNB Polarity Voltage 0, 13V, 18V optional
LNB Band Tone 0/22KHz optional
Satellite Command DiSEqC 1.0
ISI ID 1 ~ 255 user configurable
DVB-T/T2 Mode Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loopout
Input frequency 104~862MHz
Input Level -70~-20dBm
Bandwidth 6/7/8MHz
FFT Mode (DVB-T) 2k/8k;
(DVB-T2) 1K, 2K, 4K, 8K, 16K, 32K
Constellation (DVB-T) QPSK, 16QAM, 64QAM;
(DVB-T2) QPSK, 16QAM, 64QAM, 256QAM
Guarding Interval (DVB-T) 1/4, 1/8, 1/16, 1/32;
(DVB-T2) 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate (DVB-T) 1/2, 2/3, 3/4, 5/6, 7/8;
(DVB-T2) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input Return Loss 7dB
ATSC Mode
(Under Test)		 Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loopout
Input frequency 54~864MHz
Input Level -70~-7dBm
Symbol Rate 10.762MBaud
Constellation 8VSB
Roll-off Factor 0.115
Bandwidth 6MHz
DTMB Mode
(Under Test)		 Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loopout
Input frequency 46.5 ~ 866 MHz
Input Level -87 ~ -29 dBm
Symbol Rate  7.56MBaud
Bandwidth 6 MHz / 7 MHz / 8 MHz
Constellation 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
Guard Interval PN420, PN595, PN945
Roll-off Factor 0.05
Interleaving Depth 240, 720
FEC Code Rate  0.4, 0.6, 0.8
IP Input
Protocols TS over IP, UDP/RTP, IGMPV3 ARP
Bit-Rate 800Mbps for 100/1000 Base-T, duplex for SPTS and MPTS
Connector Type 2*RJ45, 100/1000M Base-T
Mode Unicast/Multicast
ASI Input
Connector Type 1 or 2 ASI, BNC, 75Ω
Standard DVB-ASI, EN50083-9
Bit Rate ≤100Mb/s
Genlock Input
Connector Type 1*Genlock, BNC, 75Ω
Input Signal Analog SD (black & burst)
DS3/E3 Input(optional)
Standard ITU-T G.703
Frame Structure ITU-T G.752 and ITU-T G.804
Connector Type 1*BNC female+1*BNC loop out, 75Ω
Bit Rate (DS3) 44.736Mbps;
(E3) 34.368Mb/s
TS Processing
TS Input Demux and Remux among Tuner / ASI / IP / DS3(optional) / E3(optional)
TS Output Demux and Remux for 2 independent ASI output
Service/PID Management Remux, filtering and remapping
PSI/SI PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation, EIT P/F edition
Descrambler DVB Common Scrambling Algorithm (CSA)
DVB-CI Module
Descrambling Processing DVB-CAS
Common Interface 2*PCMCIA slots, compatible with major CA CAMs in the market
BISS Mode BISS-1, BISS-E
Output
ASI Output Number 4*ASI
Standard EN 50083-9 ASI
Output Bit Rate Max. 200 Mbps
MPEG Frame 188/204 byte
Reflection Loss >10 dB
Connector Type 75 Ω, BNC interface
TS Processing 2 Independent TS pass through or re-multiplexed from tuner, IP and 2*ASI inputs
IP Output Protocols TS over IP, UDP/RTP, IGMPV3 ARP
Bit-Rate 800Mbps for 100/1000 Base-T, duplex for SPTS and MPTS
Connector Type 2*RJ45, 100/1000M Base-T
Video Output CVBS 1*CVBS, BNC interface
576i*25, 480i*29.97
CVBS Standard NTSC, PAL, and SECAM
Nominal Output Level 1.0 Vp-p±5%
Frequency Response <±1 dB, at 5.5 MHz for PAL/SECAM, 4.2MHz for NTSC
Chroma-Luma Delay <±30 ns
Field Time Distortion <2%
Line Time Distortion <1%
Short Time Distortion <2%
Differential Gain <3%
Differential Phase <2°
Signal to Noise Ratio >55dB (luminance weighted)
HD-SDI 2*SDI, 75 Ω, BNC interface
Resolution: 1080i*30, 1080i*29.97, 1080i*25, 720P*60, 720p*59.94, 720P*50, 720P*29.97, 720P*25, 576i*25, 480i*29.97
PID Bit Rate: max. 60Mb/s
HDMI 1*HDMI 1.3 interface (up to 1080i)
(with 4:2:2 decoding, HDMI output is not supported)
1080i*30, 1080i*29.97, 1080i*25, 720P*60, 720P*59.94, 720P*50, 720P*29.97, 720P*25, 480P*60, 576P*50, 576i*25, 480i*29.97
Video Decoding MPEG-2(MP@ ML for SD, MP@HL for HD),
Main Profile(MP) 4:2:0 8-bit,
High Profile(HP) 4:2:2 8-bit
MPEG-4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD),
High-422(Hi442P) 4:2:2, 8/10-bit,
High-10(Hi10P) 4:2:0, 10-bit,
High (HiP) 4:2:0, 8-bit,
Main (MP) 4:2:0, 8-bit,
Constrained Baseline (CBP) 4:2:0, 8-bit,
High 10 Intra Profile (AVC-I 50) 4:2:0, 10-bit,
High 4:2:2 Intra Profile (AVC-I 100) 4:2:2, 8/10-bit
Audio Output 2* D-sub 9 male including XLR adaptor cable and 6 x BNC female 75Ω
Max. 8*audio PID decoding or passed through(for SDI and AES/EBU out)
Output Level 1V p-p (with standard test stream)
Output Format HDMI or SDI embedded audio, AES; CVBS
Output Impedance (AES1 ~ AES2) 2 * D-sub9, 110Ω (with XLR adaptor cables);
(AES3 ~ AES8) 6 * BNC, 75Ω
Output Mode Left, Right, Dual Mono, Stereo
Number of Output 8*audio PID decoding or passed through(for SDI and AES/EBU out);
1*Stereo (for HDMI out);
2 pairs of stereo audio (2 Audio PID or 4 channels decoded) (for CVBS out)
Cross Talk Among Channel >70dB
THD <0.3% @ 400Hz, 1KHz test tone
Frequency Response ±0.5dB over 20Hz ~ 18KHz
Output Level 0dBm in 600Ω (0dBu), adjustable range ±10dB
Audio decoding in MPEG-1 Layer II
a. 2 stereo pairs (Stereo, Dual Mono, Left, Right)
Audio decoding in Dolby Digital (AC3)
Dolby Digital (AC3) a. 5.1 down-mix to 2.0undefined (Stereo, Dual Mono, Left, Right)
b. Dolby Digital Audio Pass-through
Dolby Digital Plus (AC3+) a. 5.1 down-mix to 2.0undefined (Stereo, Dual Mono, Left, Right)
b. Dolby Digital Audio Pass-through
Dolby E a. 5.1 down-mix to 2.0undefined (Stereo, Dual Mono, Left, Right)
b. Dolby Digital Audio Pass-through
MPEG-2 AAC a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
b. 2.0 (Stereo, Dual Mono, Left, Right)
MPEG-4 HE-AAC v1/v2 a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Mono, Left, Right)
b. 2.0 (Stereo, Dual Mono, Left, Right)
Management
Local Control by keyboard or LCD on front panel
Upgrading by Ethernet software interface USB port
Remote Control by web management
Language English
General
Voltage 100~240V AC, 50/60Hz
Power Consumption 18.0 W
Environment 0~45°C (Operation), -20~80°C (Storage)
Dimension (W*D*H) 482*405*44 mm
Net Weight 6.0 KGS

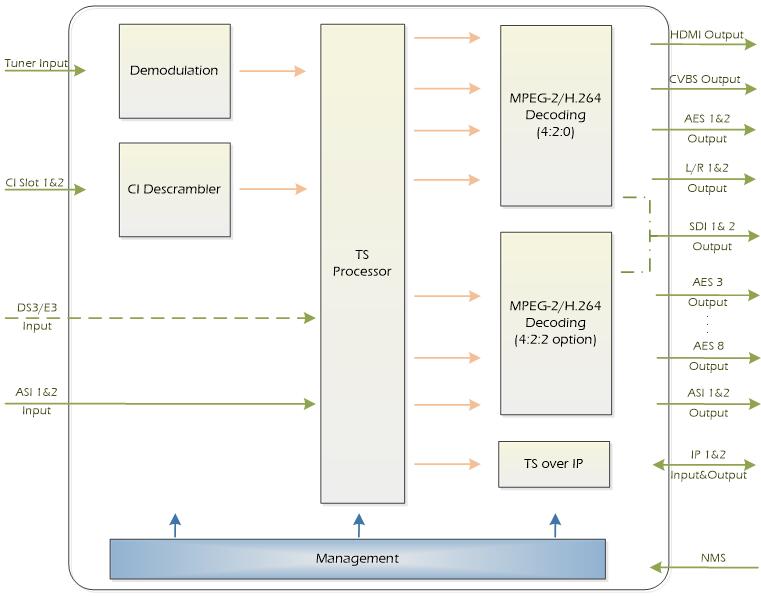

  DIAGRAM



REAR PANEL
