HD/SD PROFESSIONAL IRD/DECODER
RIH1308 8CH HD Professional IRD
FEATURES
Tuner input mode available for DVB-T/T2, DVB-S/S2, DVB-C, DTMB, ATSC-T or ISDB-T
-
Input available with Tuner, CI, ASI, IP(UDP/RTP)
-
Output with 8*ASI (in mirror of 8*CI in)+1*ASI (TS multiplexed with external TS input)
-
Output with TSoIP(UDP/RTP, 1000M)
-
8*DVB-CI slots for multi-program decryption
-
BISS-1 and BISS-E decryption modes supported
-
Built-in de-multiplexer
-
Unicast and multicast modes supported for IP out
-
PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation
-
PID Management
-
Monitoring working state by network system
-
Software upgrading via FTP remote or local USB
-
Easy-operation by LCD and keyboard on front panel
INTRODUCTIONS
RIH1308 is a high-integrated receiver decoder with a built-in transport stream processor. Equipped with a wide range of inputs of DVB-T/T2, DVB-S/S2, DVB-C, ISDB-T, ATSC-T, or DTMB tuner, ASI and TS/IP, it can be used in the satellite, cable, terrestrial and IP networks. It is able to receive up to 8-channel of tuner inputs, and provides a powerful transport stream processing engine for re-multiplexing, descrambling, TS over IP encapsulation. RIH1308 has 8 DVB common interface slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. Its re-multiplexing capability enables creation of customized SPTS and MPTS output to IP and ASI ports. After CI descrambling, de-multiplexing and re-multiplexing, the device outputs transport streams via ASI and IP(UDP/RTP,1000M). RIH1308 is an ideal product for digital TV broadcast network.
SPECIFICATIONS
| Tuner Input | ||
| DVB-C Mode | Input Frequency | 48 ~ 860 MHz |
| Input Level | 51 ~ 75 dBuv | |
| Symbol Rate | 1~7 Mbaud (ITU J.83 Annex A) | |
| Constellation | 16/32/64/128/256 QAM | |
| Bandwidth | 6 MHz / 7 MHz / 8 MHz | |
| Connector Type | 8*F type female, 75Ω for input | |
| DVB-S/S2 Mode | Input frequency | 950 ~ 2150 MHz |
| Symbol Rate | 2 ~ 45 MBaud | |
| Input Level | -25 ~ 65 dBm | |
| Roll-off Factor | (DVB-S) 0.35; (DVB-S2) 0.35, 0.25, 0.2 |
|
| Convolutional Rate | (DVB-S) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-S2 QPSK) 1/2, 3/5, 2/3, 3/4,4/5, 5/6, 8/9, 9/10; (DVB-S2 8PSK) 3/5, 2/3, 3/4,5/6, 8/9, /9/10 |
|
| LNB Power | 0, 13V, 18V | |
| DiSEqC | DiSEqC 1.0 | |
| Connector Type | 8*F type female, 75Ω for input | |
| DTV-T/T2 Mode | Input Frequency | 104~862MHz |
| Input Level | -70~-20dBm | |
| Bandwidth | 6MHz, 7MHz, 8MHz | |
| Carrier Mode | (DVB-T) 2k, 8k; (DVB-T2) 1k, 2k, 4k, 8k, 16k, 32k |
|
| Protection Interval | (DVB-T) 1/4, 1/8, 1/16, 1/32; (DVB-T2) 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 |
|
| Constellation | (DVB-T) QPSK, 16QAM, 64QAM; (DVB-T2) QPSK, 16QAM, 64QAM, 256QAM |
|
| Convolutional Rate | (DVB-T) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-T2) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
|
| ATSC-T Mode (to be released) |
Input Frequency | 54 ~ 864 MHz |
| Input Level | -75 ~ -7 dBm (ATSC 8VSB) | |
| Constellation | 8VSB | |
| Connector Type | 8*F type female, 75Ω for input | |
| DTMB Mode (to be released) |
Input Frequency | 46.5~866 MHz |
| Input Level | -87~-29 dBm | |
| Constellation | 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM | |
| Protection Interval | PN420, PN595, PN945 | |
| Roll-off Factor | 0.05 | |
| Convolutional Depth | 240, 720 | |
| Convolutional Rate | 0.4,0.6, 0.8 | |
| Symbol Rate | 7.56 MBaud | |
| Bandwidth | 6MHz, 7MHz, 8MHz | |
| Connector | 8*F type female, 75Ω for input | |
| ASI Input | ||
| Standard | DVB-ASI, EN50083-9 | |
| Bit-Rate | ≤100 Mbps | |
| Connector Type | 1*BNC female, 75Ω | |
| IP Input | ||
| Protocols | TS over IP, UDP/RTP, IGMPv3, ARP | |
| Bit-Rate | 80 Mbps | |
| Connector Type | RJ45, 10/100M Base-T | |
| DVB-CI Module | ||
| Descrambling Processing | DVB-CAS | |
| Smart Card Interface | ISO7816 | |
| Interface Card Separation | 8*PCMCIA | |
| BISS Mode | BISS-1, BISS-E | |
| Descrambling Process | DVB common algorithm | |
| TS Processing | ||
| TS Input Management Remux and demux among Tuner, ASI and TS/IP Inputs | ||
| Service and PID management Remux, filtering and remapping | ||
| PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation | ||
| Output | ||
| ASI Output | Number | 9*ASI (8*ASI from CI 1~8 + 1*ASI from external TS after Mux.) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 200 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP/RTP protocol, IGMPv3, ARP |
| Efficient Rate | (Simplex) 200Mbps; (Duplex) 80Mbps(for in or out each) |
|
| Mode | Unicast/Multicast | |
| Connector Type | RJ45, 100/1000M Base-T | |
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by FTP remote or local USB | |
| Remote Control | by web management, SNMP, HDMS software | |
| Language | English | |
| Alarm | 1*D-SUB 9, male | |
| General | ||
| Voltage | 90~250V AC, 50/60Hz | |
| Power Consumption | 28.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 430*255*44 mm | |
| Net Weight | 5.5 KGS | |

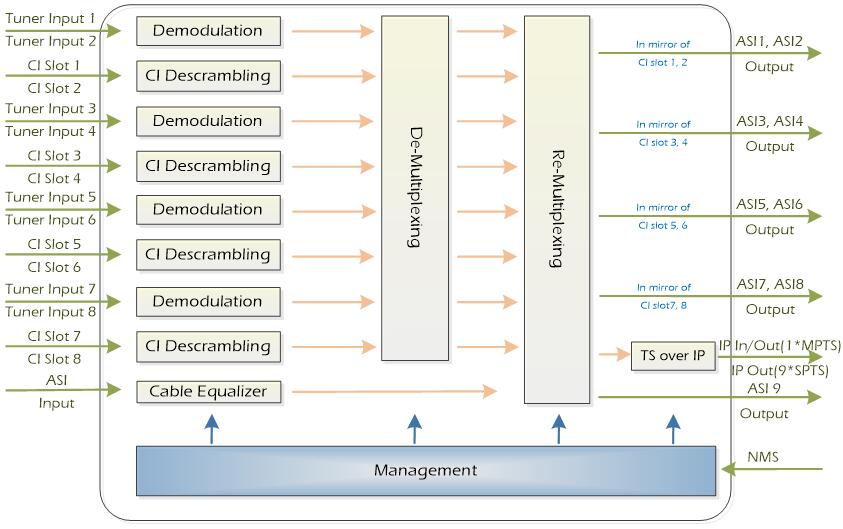

DIAGRAM
