HD/SD PROFESSIONAL IRD/DECODER
RIH1302 2CH HD Professional IRD
FEATURES
-
2*Tuner inputs, modes available in DVB-T/T2, DVB-S/S2, or DVB-C
-
1*ASI and 1*IP input (UDP, RTP/RTSP) available for Re-Multiplexing
-
Video decoding in MPEG-2 / MPEG-4 AVC(H.264) digital standard
-
Integrated with de-modulation, de-scrambling & decoding functions within one unit
-
Each CAM able to decrypt multiple programs from Tuner, ASI, or IP input
-
2*DVB-CI slots for multi-program decryption
-
Output with one channel CVBS, HDMI, SDI, or YPbPr video, and 1*ASI+1*ASI(backup)
-
Two-channel stereo audio, or one Dolby Digital/Dolby Digital Plus (5.1) channel output
-
Dolby Digital/Dolby Digital Plus Decoding and pass- -through (for HDMI/SDI out)
-
Support Closed Caption(CC), Subtitle and Teletext
-
BISS decryption modes available
-
IP(1*MPTS & 8*SPTS) on UDP and RTP/RTSP output
-
Unicast and multicast supported for IP out stream
-
Max. 128 PID mapping supported per input
-
Monitoring working situation by network systems
-
Software upgrading through web or USB
Easy-operation by LCD and keyboard on front panel and WebNMS
INTRODUCTIONS
RIH1302 HD Professional IRD is an integrated device with demodulation, de-scrambling and decoding modules within a unit. It supports 2*Tuner input in DVB-C, DVB-T/T2, or DVB-S/S2 standard, de-modulates (and de-scrambles) the RF signal and converts to one-channel of CVBS, HDMI, SDI or YPbPr for output. It is also configured with 1*ASI and 1*IP inputs, so that external streams can be re-multiplexed with the input signals from Tuner. With the two CAMs/Cis and BISS descrambling moudle, programs input from encrypted RF, ASI and IP can be descrambled. Video is decoded in MPEG-2/MPEG-4 AVC(H.264) standard and audio in MPEG-1 Layer II and AAC. Dolby Digital/ Dolby Digital Plus decoding and pass-through are also available for HDMI and SDI outputs. RIH1302 HD Professional IRD is a stable, mature and high integrated IRD with excellent performance index. It is an ideal choice for digital TV head-end contribution/distribution system, IPTV projects and so on.
SPECIFICATIONS
| Tuner Input | ||
| DVB-C Mode | Connector Type | 2*F type female, 75Ω for input; 2*F type female, 75Ω for loop through output |
| Input Frequency | 30 ~ 1000 MHz | |
| Input Level | 45 ~ 75 dBuv | |
| Symbol Rate | 1 ~ 7 Mbaud | |
| Constellation | 16/32/64/128/256 QAM | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| DVB-S/S2 Tuner input | Connector Type | 2*F type female, 75Ω for input; 2*F type female, 75Ω for loop through output |
| Input Frequency | 950 ~ 2150 MHz | |
| Symbol Rate | 2 ~ 45 MBaud (for DVB-S); 1 ~ 45 Mbaud (for DVB-S2, QPSK); 2 ~ 30 Mbaud (for DVB-S2, 8PSK) |
|
| Code rate | (DVB-S, QPSK) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-S2, QPSK,8PSK ) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
| Input Level | -65 ~ -25 dBm | |
| Roll-off Factor | (DVB-S) 0.35; (DVB-S2) 0.35, 0.25, 0.2 |
|
| DTV-T/T2 Tuner input | Connector Type | 2*F type female, 75Ω for input; 2*F type female, 75Ω for loop through output |
| Input Frequency | 30 ~ 999.999 MHz | |
| Input Level | -70 ~ -20 dBm | |
| Bandwidth | 6 MHz, 7 MHz, 8 MHz | |
| FFT | 2K/8K | |
| ASI Input | ||
| ASI Input | Standard | DVB-ASI, EN50083-9 |
| Input Bit-Rate | ≤49Mbps | |
| Connector Type | 1*BNC female 75Ω | |
| IP Input | ||
| IP Input | Connector Type | TS over IP, UDP |
| Connector Type | RJ45, 10/100M Base-T | |
| Bit-Rate | ≤70Mbps | |
| DVB-CI Module | ||
| Descrambling Processing | DVB-CAS | |
| Smart Card Interface | ISO7816 | |
| Interface Card Separation | 2*PCMCIA | |
| BISS Mode | BISS-1, BISS-E, up to 120Mbps | |
| Output | ||
| ASI Output | Number | 2*ASI |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 54 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP, UDP, RTP/RTSP protocol |
| Connector Type | RJ45, 10/100M Base-T | |
| Output TS Mode | 1*MPTS & 8*SPTS | |
| Mode | Multicast/Unicast | |
| Video Output | Video Out Interface | 1*CVBS / 1*SDI / 1*YPbPr, BNC interface 1*HDMI |
| Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |
| Video Decoding | MPEG-2/H.264 | |
| Audio Output | Audio Out interface | 2 *Stereo/4*mono, HDMI, SDI |
| Audio Decoding | MPEG-1 Layer II LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus |
|
| Audio Output Mode | Left, Right, Stereo, 5.1 CH | |
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet interface or USB | |
| Remote Control | by web NMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.0 KGS | |

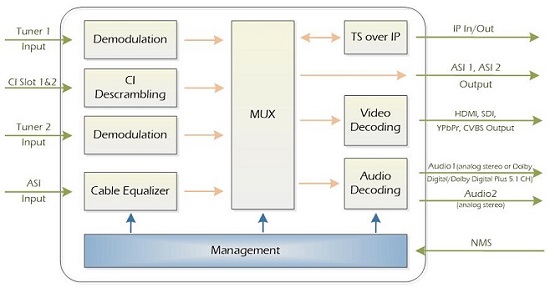

DIAGRAM
