HD/SD PROFESSIONAL IRD/DECODER

RIH1301 HD Professional IRD

HD/SD TRANSCODER

FEATURES

  • Tuner input mode available for DVB-T/DVB-T2/ DVB-S2/DVB-S/DVB-C/ATSC-T/ISDB-T/DTMB
  • Input available with Tuner, ASI, IP(100M, UDP)
  • SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • Diversified choices of output interfaces, including ASI, CVBS, YPbPr, HDMI, SD/HD-SDI, 10/100M TS over IP(1*MPTS & 8/32*SPTS) output
  • 2*DVB-CI slots for multi-program decryption
  • 16APSK, 32 APSK constellation optional for DVB-S/S2 RF in
  • BISS-1 and BISS-E decryption modes supported
  • Closed Caption(CC) support
  • Built-in de-multiplexer
  • Unicast and multicast modes supported for IP out
  • PCM audio embedded in SDI and HDMI, SPDIF and analog Audio XLR, RCA outputs
  • Audio decoding in MPEG-2 Layer II, AC3, HE-AAC(v2), LC-AAC
  • Monitoring working state by network system
  • Software upgrading through IP
  • Easy-operation by LCD and keyboard on front panel

  INTRODUCTIONS

RIH1301 Series HD IRD is a high-integrated professional device, who accepts TS signals from ASI, tuner or IP sources, and decodes them into audio and video signals. Its tuner input mode can be respectively in DVB-C, DVB-S/S2, DVB-T/T2, ATSC-T, and ISDB-T. With the configuration of CAM module, it is workable with various Conditional Access System(CAS). It can also pack the entire TS stream signals into IP packet (UDP) through network transmission, so that users can watch programs on computer directly. RIH1301 IRD has the option of de-multiplexing, which realizes selection of entire or part of output signals as is required. The device can be applied to Digital Satellite News Gathering (DSNG), due to the adoption of BISS descrambling function. It provides diversified output interfaces, such as HD-SDI, SD-SDI, YPbPr, HDMI, CVBS, XLR balanced audio, and S/PDIF digital audio. This HD Professional IRD also provides IP output, with 1*MPTS & 8/32*SPTS optional, and 1*ASI+1*ASI(backup) output and another 2*ASI for pass through of input Tuner. This feature realizes its wide application in DTV contribution and distribution, and also for IPTV. Operators and users can find the right choice for their systems, no matter what application they are going to take part in.



  SPECIFICATIONS

Tuner Input
DVB-C Mode Input Frequency 47 ~ 860 MHz
Input Level 45 ~ 75 dBuv
Symbol Rate 1~7 Mbaud
Constellation 16/32/64/128/256 QAM
Bandwidth 6 MHz / 7 MHz / 8 MHz
Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loop through output
DVB-S/S2 Mode Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loop through output
Input Frequency 950 ~ 2150 MHz
Symbol Rate 1 ~ 45 MBaud (for DVB-S, DVB-S2/QPSK, 8PSK);
1 ~ 35 Mbaud (for 16APSK, for option);
1 ~ 28 Mbaud (for 32APSK, for option)
Input Level -65 ~ -25 dBm
Roll-off Factor (DVB-S) 0.35;
(DVB-S2) -0.35, 0.25, 0.2
DVB-T Mode Connector Type 1*F type female 75Ω for input;
1*F type female 75Ω for loop through output
Input Frequency 146~862MHz
Input Level -70~-20dBm
Bandwidth 6/7/8MHz
FFT Mode 2k/8k
DVB-T2 Mode Connector Type 1*F type female 75Ω for input;
1*F type female 75Ω for loop through output
Input frequency 44~1002MHz
Input Level -70~-20dBm
Bandwidth 6/7/8MHz
FFT mode 2k/8k
ATSC-T Mode Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loop through output
Input frequency 54~864MHz
Input Level -70~-20dBm
Bandwidth 6MHz
Constellation 8VSB
ISDB-T Mode Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loop through output
Input frequency 153 ~ 862 MHz
Input Level -70 ~ -20 dBm
Bandwidth 6 MHz / 7 MHz / 8 MHz
DTMB Connector Type 1*F type female, 75Ω for input;
1*F type female, 75Ω for loop through output
Input frequency 146 ~ 862 MHz
Input Level -70 ~ -20 dBm
Bandwidth 6 MHz / 7 MHz / 8 MHz
FEC Code Rate  0.4, 0.6, 0.8
Constellation 4QAM-NR,4QAM,16QAM,32QAM,64QAM
Interleaving Depth 240,720
ASI Input
Standard DVB-ASI, EN50083-9
Bit-Rate ≤49 Mbps
Connector Type 1*BNC female, 75Ω
IP Input
Protocols TS over IP, UDP
Bit-Rate ≤70 Mbps
Connector Type RJ45, 10/100M Base-T
DVB-CI Module
Descrambling Processing DVB-CAS
Smart Card Interface ISO7816
Interface Card Separation PCMCIA
BISS Mode BISS-1, BISS-E
Output
ASI Output Number 2*ASI+2*ASI(for pass through)
Standard EN 50083-9 ASI
Output Bit Rate Max. 54 Mbps
MPEG Frame 188/204 byte
Reflection Loss >10 dB
Connector Type 75 Ω, BNC interface
IP Output Transport Protocol TS over IP output, UDP protocol
Connector Type RJ45, 10/100M Base-T
Mode Multicast/Unicast
Output TS 1*MPTS/8*SPTS;
1*MPTS/32*SPTS for option
Video Output CVBS 1*CVBS, BNC interface
576i@25fps, 480i@29.97
YPbPr(BNC) 1*YPbPr, BNC interface
1080i@25,29.97, 30fps; 720P@50, 59.94fps
SDI(BNC) 1*SDI, BNC interface
1080i@25, 29.97, 30fps; 720P@50, 59.94fps; 576@25fps, 480i@29.97
HDMI 1*HDMI
1080i@25,29.97, 30fps; 720P@50, 59.94fps
Video Decoding MPEG-2, H.264 HD/SD
Audio Output Stereo Unbalanced Audio 1*RCA, BNC interface
Stereo Balanced Audio 1*XLR
Digital Audio 1*S/PDIF
PCM Audio Embedded 1*SDI, 1*HDMI
Audio Decoding MPEG-1 Layer II, AC3, HE-AAC(V2), LC-AAC
Management
Local Control by keyboard or LCD on front panel
Upgrading by Ethernet software interface
Remote Control by web management
Language English
General
Voltage 100~240V AC, 50/60Hz
Power Consumption 18.0 W
Environment 0~45°C (Operation), -20~80°C (Storage)
Dimension (W*D*H) 482*405*44 mm
Net Weight 4.0 KGS

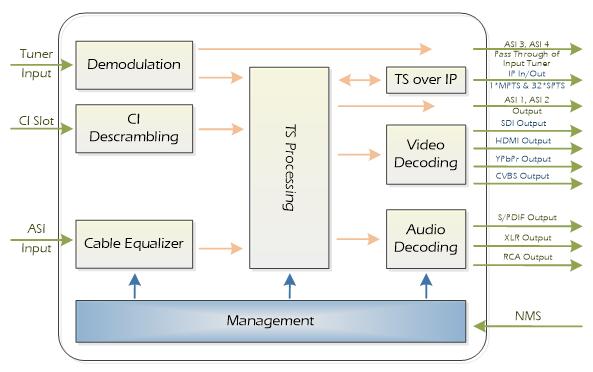

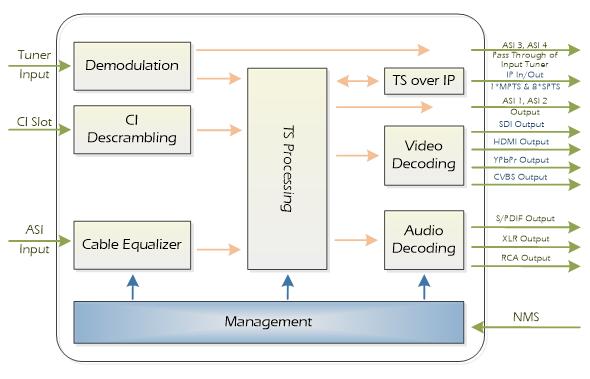

  DIAGRAM



REAR PANEL
