HD/SD PROFESSIONAL IRD/DECODER
RFR2008 IP to A/V Professional Receiver
FEATURES
-
4*IP and 1*ASI inputs
-
IP input in UDP protocol, MPTS or SPTS
-
IP input in unicast or multicast
-
8*CVBS video and 8*unbalanced stereo audio outputs
-
Video decoding in MPEG-2/MPEG-4 AVC(H.264)/AVS+ digital standard
-
Real-time bitrate monitoring
-
Easy-operation by LCD and keyboard on front panel
INTRODUCTIONS
RFR2008 Four-Channel IP to Eight-Channel A/V Professional Decoder is able to get in up to 4*IP and 1*ASI TS, and output in 8*CVBS video and 8*unbalanced stereo audio signals at max.. It decodes TS in MPEG-2, MPEG-4 AVC(H.264) or AVS+ formats for video, and MPEG-2 Layer II for audio. The device is stable in performance and able to monitor bitrate in real time. Because of its reliable designs and good features, RFR2008 has been adopted to MPEG TS processing, digital TV head-end contribution/distribution system, IPTV projects and so on.
SPECIFICATIONS
| Input | ||
| IP Input | Number | 4*IP |
| Connector Type | RJ45, 10/100M Base-T | |
| Protocols | UDP | |
| TS Mode | MPTS or SPTS | |
| Mode | Multicast/Unicast | |
| ASI Input | Number | 1*ASI |
| Standard | DVB-ASI, EN50083-9 | |
| Input Bit-Rate | ≤49Mbps | |
| Connector Type | 1*BNC female 75Ω | |
| Decoding | ||
| Video Decoding | MPEG-2 / MPEG-4 AVC(H.264) / AVS+ | |
| Audio Decoding | MPEG-1 Layer II | |
| Output | ||
| Video Output | Number | 8*CVBS |
| Resolution | 576i@25fps, 480i@29.97fps | |
| Connector Type | RCA | |
| Audio Output | Number | 8*unbalanced stereo |
| Connector Type | RCA | |
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet interface | |
| Remote Control | by web NMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.0 KGS | |

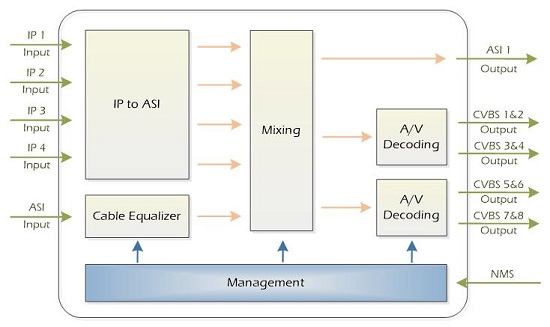

DIAGRAM
REAR PANEL
