HD/SD PROFESSIONAL IRD/DECODER
RFR1512 16CH Professional Receiver
FEATURES
-
Configured with max. 16* DVB-S/S2 (or DVB-C, DVB-T/T2, or ISDB-T for option) Tuner inputs
-
Integrated with demodulation & gateway function modules
-
MPEG-2, MPEG-4 TS to IP one way conversion supported
-
IP out in 512*SPTS, on UDP, RTP protocol
-
Unicast and multicast modes supported for IP output
-
BISS descrambling supported(up to 800 Mbps)
-
2*GigE output, one backup for the other
-
Max. bit-rate of 800 Mbps achievable
-
DisEqc function, accurate PCR adjustment, PID filtering & re-mapping
-
Monitoring working situation by network system
-
Software upgrading through IP
-
Easy-operation by LCD and keyboard on front panel
INTRODUCTIONS
RFR1512 16-Channel Professional Receiver acts as a high-efficiency device for conversion from Tuner or ASI to IP in digital TV head-end systems. It demodulate received 16*DVB-S/S2 RF signals to TS signals, and then transmit them via IP(GigE, 1000M, UDP/RTP protocol) port. The device is able to output with 512*SPTS, while with BISS descrambling is supported. Due to its features of high integration, multi-channel capacity designs, low error rate, etc., RFR1512 has been widely used between the new generation of IP network and DVB network, and also an ideal and cost-effective choice in IPTV systems.
SPECIFICATIONS
| Tuner input | ||
| DVB-S/S2 Mode | Connector Type | 16*F type female, 75Ω for input; 16*F type female, 75Ω for loop through output |
| Input Frequency | 950 ~ 2150 MHz | |
| Symbol Rate | 2 ~ 45 MBaud (for DVB-S) 1 ~ 45 Mbaud (for DVB-S2, QPSK) 2 ~ 30 Mbaud (for DVB-S2, 8PSK) |
|
| Code Rate | (DVB-S, QPSK) 1/2, 2/3, 3/4, 5/6, 7/8; (DVB-S2, QPSK, 8PSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
| DVB-C Mode | Connector Type | 16*F type female, 75Ω for input; 16*F type female, 75Ω for loop through output |
| Input Frequency | 30 ~ 1000 MHz | |
| Standard | J.83A(DVB-C), J.83B, J.83C | |
| Constellation | 16/32/64/128/256 QAM | |
| DVB-T/T2 Mode | Connector Type | 16*F type female, 75Ω for input; 16*F type female, 75Ω for loop through output |
| Input Frequency | 30 ~ 999.999 MHz | |
| Bandwidth | 6/7/8 M | |
| ISDB-T Mode | Connector Type | 16*F type female, 75Ω for input; 16*F type female, 75Ω for loop through output |
| Input Frequency | 30~1000MHz | |
| Output | ||
| IP Output | Transport Protocol | TS over IP output, UDP & RTP protocol |
| Mode | Unicast or multicast | |
| Connector Type | RJ45, 1000M GigE | |
| Output Channel | 512*SPTS | |
| Other Functions | ||
| BISS Descrambling in Mode 1, Mode E | ||
| CA PID filtering, PID re-mapping(automatically / manually) | ||
| Accurate PCR adjusting | ||
| Auto PSI/ SI table generation | ||
| Management | ||
| Local Control | by keyboard or LCD on front panel | |
| Upgrading | by Ethernet interface | |
| Remote Control | by web NMS | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Power Consumption | 18.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*405*44 mm | |
| Net Weight | 4.5 KGS | |

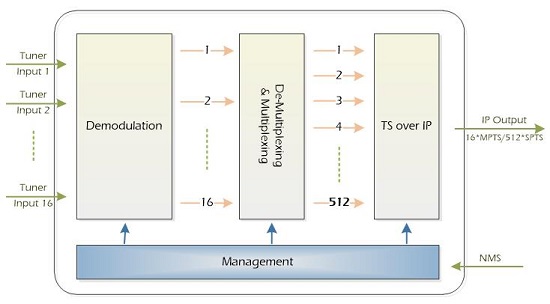

DIAGRAM
