HD/SD ENCODER/TRANSCODER
RES2308 8CH MPEG-2/H.264 SD Encoder
FEATURES
-
Video compression: MPEG-4 AVC/H.264, MPEG-2
-
Audio compression: MPEG-1 Layer II, LC-AAC, and HE-AAC(v2)
-
Video input interface: 8*CVBS, or 8*SD-SDII
-
Audio input interface: 8*unbalanced stereo L/R, or 8*SD-SDI embeddedI
-
PAL/NTSC modes available
-
Providing ASI and IP (UDP) output
-
Equipped with empty packets filtering of IP out
-
Able to multiplex local signals with external TS from ASI input
-
1*MPTS or 1*MPTS/8*SPTS IP out optional
-
Multi-pass LookAhead CBR or VBR encoding
-
Built-in PCR capability
-
Low latency, low bit rate performances
-
Providing PSI/SI compilation and NIT, LCN insertion
-
Easy operation and upgrading by keyboard or LCD
-
SNMP or WEB management for control
-
Upgrading by Ethernet interface
INTRODUCTIONS
Integrated with MPEG-2 and MPEG-4 AVC/H.264 compression formats, RES2308 Eight-Channel MPEG-2/H.264 SD Encoder realizes multi-function and powerful operations of SD encoders. Flexible designs and configurations of inputs, 8*CVBS, or 84*SD-SDI, provides more options for diversified applications in a cost-effective way. The device supports MPEG-1 Layer II, LC-AAC and HE-AAC audio compression formats, with 8*unbalanced stereo LR or 8*SD-SDI embedded for options. RES2308 offers an additional ASI input interface, making input local programs to be multiplexed with its SPTS or MPTS signals. This feature makes it more powerful, functional and not only limited as an encoder. RES2308 performs well in ultra-low bit rate and low latency for each channel. The device outputs with ASI and TSoIP(in 1*MPTS or 8*SPTS, UDP protocol), to meet variety of needs in digital TV industry, such as IPTV, DTV broadcasting head-end systems, and so on.
SPECIFICATIONS
| Video Compression | ||
| Video Compression | MPEG-4 AVC/H.264, MPEG-2 | |
| Video Input | 8*CVBS / 8*SD-SDI optional | |
| Analog Video Input | PAL, NTSC | |
| Resolution | NTSC / 720*480_59.94i, 352*288_59.94i, 320*240_59.94i, 320*180_59.94i, 176*144_59.94i, 160*120_59.94i, 160*90_59.94i; PAL / 720*576_50i, 352*288_50i, 320*240_50i, 320*180_50i, 176*144_50i, 160*120_50i, 160*90_50i |
|
| Bit-rate | 0.25~15Mbps for MPEG-4 AVC/H.264 compression, CBR/VBR; 0.5~15Mbps for MPEG-2 compression, CBR/VBR |
|
| GOP | IPPPP, IBPBP, IBBPB, IBBBP | |
| Video Pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II, LC-AAC, HE-AAC(V2) | |
| Audio Input | 8*unbalanced stereo LR / 8*SD-SDI embedded | |
| Sampling Rate | 48 KHz | |
| Sampling Accuracy | 24-bit | |
| Bit-Rate | 32Kbps~384Kbps (for any channel) | |
| Input | ||
| Video | 8*CVBS or 8*SD-SDI, BNC interface | |
| Audio | 8*unbalanced stereo LR or 8*SD-SDI embedded, BNC interface | |
| TS | 1*ASI, BNC interface | |
| Multiplexing | ||
| Multiplexing with external ASI(1*SPTS or1*MPTS) in | ||
| Multiplexing with 8 local encoded programs | ||
| Providing PSI/SI compilation and NIT, LCN insertion | ||
| Output | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP protocol |
| IP Output Channel | 1*MPTS or 8*SPTS | |
| Mode | unicast / multicast | |
| Connector Type | RJ45, 10/100M | |
| Support empty packets filtering | ||
| Management | ||
| Connector | 1*RJ-45, 10/100 Base-T (NMS interface) | |
| Remote Control | by NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by Ethernet software | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*455*44 mm | |
| Net Weight | 4.0 KGS | |

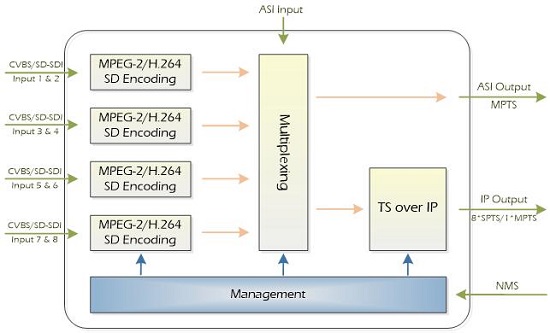

DIAGRAM
REAR PANEL
