HD/SD ENCODER/TRANSCODER

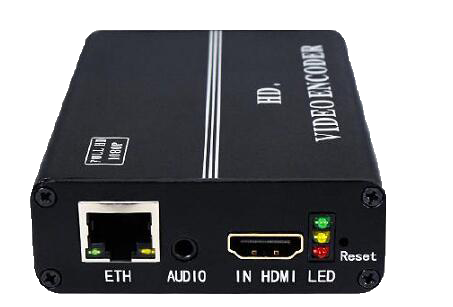

REH2501 H.265/H.264 HD Encoder
FEATURES
-
Video compression: H.265/H.264 HD
-
Audio compression: MPEG-1 Layer II, AAC
-
Video resolution up to 1080P full HD
-
Input interface: SDI/HDMI(compatible with HDCP), IP
-
Output TS with IP
-
Dual-stream output, main-stream and vice-stream able to be transferred in different network protocols
-
Support HTTP, UDP, RTP, RTSP, RTMP, ONVIF protocols, 1000M
-
Multi-pass LookAhead CBR/VBR/ABR encoding
-
Water print insertion in TS available; font configurable
-
Web NMS remote control and rights management
-
WAN remote control management
-
Wide applications and the processed TS can be decoded by VLC and STB(Set-Top-Box)
INTRODUCTIONS
REH2501 Single-Channel H.265/H.264 HD Encoder is a professional device designed especially for HDMI
/SDI input signals. Adopted with MPEG-4 AVC/H.264 & H.265 for video compression and MPEG-1 Layer II,
AAC for audio encoding, the device is able to compress input signals to standard TS and output over
IP(1000M). REH2501 is able to output dual-stream, and the main-stream and vice-stream can be set with
different network protocols for transfer. The device is compatible with HTTP, UDP, RTP, RTSP, RTMP, ONVIF
protocols, which make it possible to be an idea option for diversified applications. Such as HD IPTV,
recoding and broadcast of NVR, digital TV HD stream server, server of video conference system, video
collection of network conference system, hotel and restaurant cable TV system, etc..
SPECIFICATIONS
| Video Compression | ||
| Video Compression | H.265, H.264 HD | |
| Video Input | HDMI or SDI optional | |
| Video Input Mode | PAL, NTSC | |
| Resolution | NTSC /1920*1080_60P, 1920*1080_60i, 1680*1056_60P, 1680*1056_60i, 1280*1080_60i, 1280*720_60P, 1024*576_60P, 1024*576_60i, 850*480_60P, 850*480_60i, 720*576_60P, 720*576_60i, 720*540_60P, 720*540_60i, 720*480_60P, 720*480_60i, 720*404_60P, 720*404_60i, 704*576_60P, 704*576_60i, 640*480_60P, 640*480_60i, 640*360_60P, 640*360_60i; PAL / 1920*1080_50P, 1920*1080_50i, 1680*1056_50P, 1680*1056_50i, 1280*1080_50i, 1280*720_50P, 1024*576_50P, 1024*576_50i, 850*480_50P, 850*480_50i, 720*576_50P, 720*576_50i, 720*540_50P, 720*540_50i, 720*480_50P, 720*480_50i, 720*404_50P, 720*404_50i, 704*576_50P |
|
| Bit-Rate | 16 Kbps~12 Mbps, CBR/VBR | |
| Video pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| GOP | Adjustable | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II, AAC | |
| Audio Input | HDMI/SDI embedded | |
| Sampling Rate | 4Auto adaptive | |
| Sampling Accuracy | 24-bit | |
| Input | ||
| Video | 1*HDMI or 1*SDI | |
| Audio | 1*HDMI or 1*SDI | |
| Output | ||
| IP Output | Transport Protocol | TS over IP output, UDP, RTP, HTTP, RTSP, RTMP, ONVIF protocol |
| IP Output Channel | 2*MPTS/2*SPTS | |
| Output Mode | Unitcast/Multicast | |
| Connector Type | RJ45, 100/1000 Base-T Ethernet interface | |
| Management | ||
| Language | English | |
| Remote Control | by Web NMS | |
| Upgrading | by web | |
| General | ||
| Voltage | 12V DC | |
| Power Consumption | 5.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimensions(W*D*H) | 480*430*44 mm | |
| Net Weight | 2.5 KGS | |

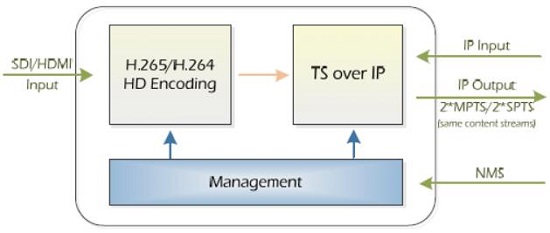

DIAGRAM
