HD/SD ENCODER/TRANSCODER
REH2401 H.264 Smart HD Encoder
FEATURES
-
Video compression: H.264 HD
-
Audio compression: MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC
-
Video resolution up to 1080P full HD
-
Input interface: HDMI(compatible with HDCP)
-
Configured with USB port, able to record, save and playback
-
Output TS with IP
-
Support HTTP, UDP(unicast/multicast), RTMP, RTP, RTSP, and HLS protocols; 1000M
-
Web NMS remote control and rights management
-
WAN remote control management
-
Wide applications and the processed TS can be decoded by VLC and STB(Set-Top-Box)
INTRODUCTIONS
REH2401 Single-Channel H.264 HD Encoder is a smart but professional device designed especially for HDMI(compatible with HDCP) input signals. Adopted with MPEG-4 AVC/H.264 for video compression and MPEG-1 Layer II, MPE-G-2 AAC & MPEG-4 AAC for audio encoding, the device is able to compress HDMI input signals to standard TS and output over IP(1000M). REH2401 is able to output max. 3 streams, which can be set with different network protocols for transfer(in LAN or internet circumstances). The device is compatible with HTTP, UDP(unicast/multicast), RTMP, RTP, RTSP, and HLS protocols, which make it possible to be an idea option for diversified applications. Such as HD IPTV, recoding and broadcast of CCTV, digital TV HD stream server, server of video conference system, video collection of network conference system, hotel and restaurant cable TV system, etc..
SPECIFICATIONS
| Video Compression | ||
| Video Compression | H.264 HD | |
| Video Input | HDMI | |
| Video Input Mode | PAL, NTSC | |
| Resolution | NTSC /1920*1080_60P, 1920*1080_60i, 1280*720_60P, 720*576_60i; PAL / 1920*1080_50P, 1920*1080_50i, 1280*720_50P, 720*576_50i |
|
| Bit-Rate | 1.0 ~15.0 Mbps | |
| Video pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| GOP | Adjustable | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC | |
| Audio Input | HDMI embedded | |
| Sampling Rate | 48 KHz, 44.1KHz(RTMP) | |
| Bit-Rate | 48 Kbps, 64 Kbps, 96 Kbps, 128 Kbps | |
| Input | ||
| Video | 1*HDMI | |
| Audio | 1*HDMI | |
| Output | ||
| IP Output | Transport Protocol | TS over IP output, UDP, RTMP, RTP, HTTP, RTSP, and HLS protocol |
| IP Output Channel | 1*MPTS/1*SPTS | |
| Output Channel QTY. | Up to 3 streams out in different protocol and resolutions | |
| Connector Type | RJ45, 100/1000 Base-T Ethernet interface | |
| USB Recorder & Save | ||
| Port Number | 1*USB | |
| Functions | TS recorder, save, etc. | |
| Management | ||
| Language | English | |
| Remote Control | by Web NMS | |
| Upgrading | by web server | |
| General | ||
| Voltage | 12V DC | |
| Power Consumption | 5.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimensions(W*D*H) | 183*110*48 mm | |
| Net Weight | 0.6 KGS | |
DIAGRAM

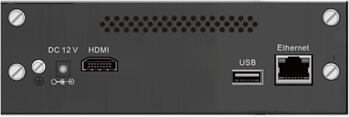

REAR PANEL
