HD/SD ENCODER/TRANSCODER
REH2224 24CH H.264 HD Encoder
FEATURES
-
Advanced video compression: H.264/AVC high profile level 4.0
-
Audio compression in MPEG-1 Layer II
-
Full 1080P video compression
-
Video/audio input interface: HDMI(HDCP supported)
-
Providing ASI(optional) and IP output
-
1*MPTS(UDP/RTSP) or 24*SPTS(UDP/RTP) IP output
-
Support QR code, logo, and caption insertion
-
Equipped with empty packets filtering of IP out
-
Multi-pass LookAhead CBR or VBR encoding
-
Built-in PCR capability
- Web NMS remote control and centralized management
INTRODUCTIONS
REH2224 24-Channel MPEG4 AVC/H.264 HD Encoder adopts the most advanced MPEG-4 AVC/H.264 video encoding algorithm, combining with our advanced audio and video pre-processing technologies. Input with analog and digital video signals by max. 24*HDMI(HDCP supported). This device can encode and transmit high-quality audio & video in low bit-rate. Meanwhile, it compresses audio by MPEG-1 Layer Il. REH2224 can output with ASI(optional) and IP, while with IP output, optional for 1*MPTS or 24*SPTS. Its high-integration and cost-effective design offers an excellent digital video encoding solution to operators, and makes it widely used in digital TV head-end system, IPTV project, broadcasting, distribution and contribution systems.
SPECIFICATIONS
| Video Compression | ||
| Video Compression | H.264/AVC high profile level 4.0/3.0 | |
| Video Input | HDMI(support HDCP protocol) | |
| Analog Video Input | PAL, NTSC | |
| Resolution | Input: 1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P, 720*576_50i, 720*480_60i; Output: 1920*1080_30P, 1920*1080_25P, 1280*720_30P, 1280*720_25P, 720*576_25P, 720*480_30P |
|
| Bit-rate | 1~13Mbps per channel, CBR/VBR | |
| GOP | IP…P (P frame adjustment, without B frame)IP…P (P Frame adjustment, without B Frame ) | |
| Video Pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II | |
| Digital Audio Input | HDMI | |
| Sampling Rate | 48 KHz | |
| Sampling Accuracy | 24-bit | |
| Bit-Rate | 64Kbps ~ 384Kbps | |
| Input | ||
| Video | 24*HDMI | |
| Audio | 24*HDMI | |
| Output | ||
| ASI Output(optional) | Number | 1*ASI |
| Standard | EN 50083-9 ASI | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75Ω, BNC interface | |
| IP Output | Transport Mode | TS over IP output, unicast/multicast |
| IP Out Channel/Protocol | 1*MPTS(UDP, RTP) or 24*SPTS(UDP, RTP) optional | |
| Connector Type | 2*RJ45(1*GE+1*FE) | |
| Support empty packets filtering | ||
| Management | ||
| Local Control | LCD and keyboard on front panel | |
| Remote Control | by Web NMS | |
| Upgrading | Ethernet software upgrade | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60 Hz | |
| Power Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimensions(W*D*H) | 482*410*44.5 mm | |
| Gross Weight | 9.0 KGS | |

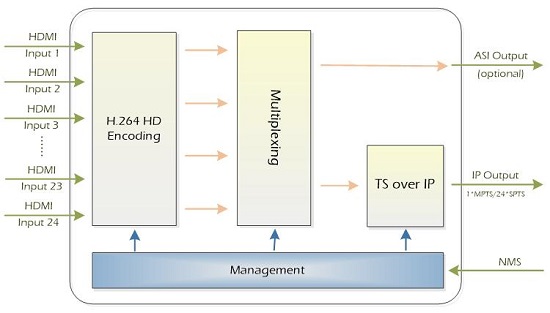

DIAGRAM
