HD/SD ENCODER/TRANSCODER
REH2204 4CH H.264(MPEG-4 AVC) HD Encoder
FEATURES
-
Advanced video compression: H.264/AVC high profile level 4.0
-
Output with ASI and IP (UDP/RTP)
-
Equipped with empty packets filtering of IP out
-
Input interface: HDMI(HDCP support) or HD-SDI
-
Multi-pass LookAhead CBR or VBR encoding
-
Built-in PCR capability
-
Capable of multiplexing input signals with 1*external ASI in
-
Providing PSI/SI compilation and NIT, LCN insertion
-
PAL/NTSC modes available
INTRODUCTIONS
REH2204 Four-Channel H.264 HD Encoder is designed especially for multiple channels of video and audio compression and processing. It works in high performances, ultra-low latency and low bit rates for DTV systems, by adopting rt compression technology of MPEG-4 AVC/H.264, and supporting resolution up to 1080P full HD. Audio compression is supported by MPEG-1 Layer II, while HE-AAC & LC-AAC are also available by option. Apart from 4*HDMI or 4*SDI, the device offers an external ASI input for multiplexing. After processing of encoding and multiplexing, it outputs TS by ASI and TSoIP(UDP/RTP) interfaces. The device is able to work on multiple channels of signals in effective way, making it widely used in digital TV head-end system, broadcasting, distribution and contribution systems.
SPECIFICATIONS
| Video Compression | ||
| Video Compression | H.264/AVC high profile level 4.0/3.0 | |
| Video Input | HDMI(support HDCP protocol); HD-SDI optional |
|
| Video Input Mode | PAL, NTSC | |
| Resolution | NTSC / 1920*1080_60P, 1920*1080_60i, 1280*720_60P, 720*480_60i; PAL /1920*1080_50P, 1920*1080_50i, 1280*720_50P, 720*576_50i |
|
| Bit-rate | 0.8~19.0 Mbps, CBR/VBR | |
| GOP | IBBP | |
| Video pre-processing | De-Interlacing, Noise Reduction, Sharpen | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II(default), (MPEG-2/4 LC-AAC, HE-AAC(V2) optional) | |
| Audio Input | HDMI; SDI optional |
|
| Sampling Rate | 48 KHz | |
| Sampling Accuracy | 24-bit | |
| Bit-Rate | 64 Kbps~384 Kbps (for any channel) | |
| Input | ||
| Video | 4*HDMI or 4*SDI | |
| Audio | 4*HDMI or 4*SDI | |
| ASI | 1*ASI | |
| Output | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP&RTP protocol |
| IP Output Channel | 1*MPTS or 4*SPTS | |
| Mode | Unicast/Multicast | |
| Connector Type | RJ45, Gigabit Ethernet(1000M) | |
| Support empty packets filtering | ||
| Multiplexing | ||
| Multiplexing with external ASI(1*SPTS or 1*MPTS) in | ||
| Multiplexing with 4 local encoded programs | ||
| Providing PSI/SI compilation and NIT, LCN insertion | ||
| Management | ||
| Local Control | LCD and keyboard on front panel | |
| Remote Control | by SNMP | |
| Upgrading | Ethernet software upgrade | |
| Language | English | |
| General | ||
| Voltage | 110~220V AC, 50/60 Hz | |
| Power Consumption | 21.0 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimensions(W*D*H) | 482*405*44.5 mm | |
| Net Weight | 4.5 KGS | |

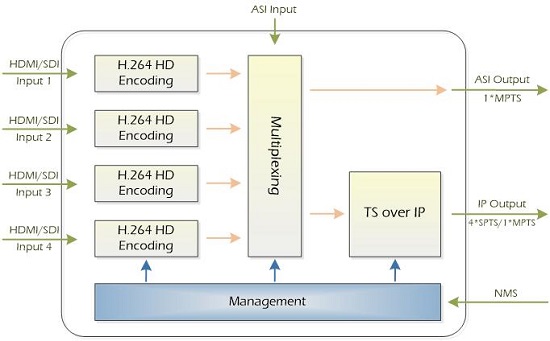

DIAGRAM

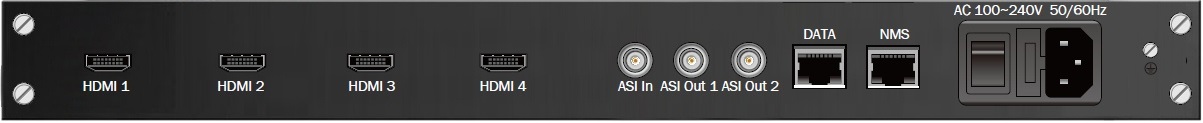

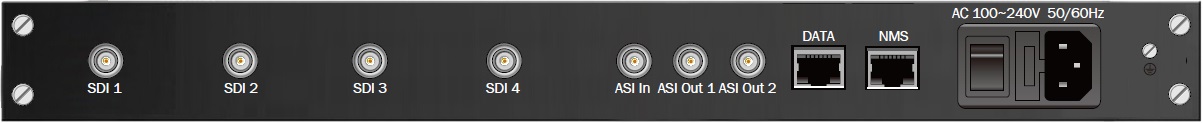

REAR PANEL
