RMT9021 IP to DVB-T Modulator
FEATURES
- Modulation standard of EN300744
- Input with 2*IP(MPTS or SPTS), UDP protocol, 100M Ethernet interface
- Huge buffer memory for the burst code stream
- RF output in two adjacent carriers
- Frequency stability reaches to 0.1PPM
- RF Output frequency range: 30MHz~1000MHz in 1 kHz step
- Easy-operation by LCD and keyboard on front panel
INTRODUCTIONS
RMT9021 IP to DVB-T modulator is one of our modulators, which is mature and in good performance. This device is able to be input with 2*IP streams(MPTS or SPTS), in multicast or unicast mode, UDP protocol, and modulate them out in two adjacent DVB-T carriers. It is also easy in operation by LCD keypad on front panel, as well as web network management system. It is a professional broadcasting device for operators, project providers and is widely used in DVB head-end systems.
SPECIFICATIONS
| Input | ||
| IP Input | Input Channels | 2*IP(SPTS/MPTS) |
| Transport Protocol | TS over IP, UDP protocol | |
| IP Input Mode | Unicast/Multicast | |
| Connector | RJ45, 100 Base-T Ethernet interface | |
| IGMP Snooping | V2, V3 | |
| Modulation | ||
| Standard | DVB-T, EN300 744 | |
| FFT | 2K, 8K | |
| Constellation | QPSK, 16QAM, 64QAM | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Bandwidth | 6M, 7M, 8M | |
| External Coding | RS(204, 188) | |
| Output | ||
| RF Output | Number | 1*RF(2*adjacent DVB-T carriers) |
| Frequency Range | 30~1000 MHz, successionally adjustable, in 1Hz stepping | |
| Output Attenuation | -30 dB ~ -10dB, in 0.1 dB stepping | |
| MER | ≥34 dB | |
| Signal Stability | ±0.1 dB | |
| Connector Type | 50Ω, F type interface | |
| Management | ||
| Remote Control | by Web NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by network | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 460*300*44 mm | |
| Net Weight | 2.5 KGS | |

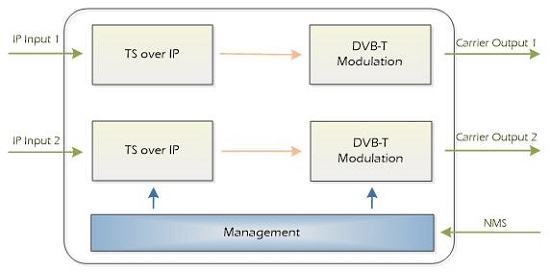

DIAGRAM
