RMI9041 IP to ISDB-T/Tb Modulator
FEATURES
- Modulation standard of ISDB-T(ARIB STD-B31)
- Input with 4*IP(MPTS or SPTS), UDP protocol, 1000M Ethernet interface
- Layered transmission in modes of A, A+B, A+B+C
- RF output in two adjacent carriers
- 4*IP(in mirror of the input 4*IP), and RF output
- PID remapping
- Frequency stability reaches to 0.1PPM
- Easy-operation by LCD and keyboard on front panel
- Management by Web NMS
INTRODUCTIONS
This RMI9041 IP to ISDB-T modulator is a newly developed modulator, especially for applications of Japanese and South American applications of digital TV head-end. It is fully compliant with ARIB STD-831 standard and proved to be in high performance. RMI9041 is able to deal with 4*IP transport streams at the same time, each can be MPTS or SPTS, and unicast or multicast mode. IP port is configured with 1000M Ethernet interface, in UDP protocol. The device can output 4*IP in mirror of each input IP stream, and RF after processing of multiplexing. It is designed in output with two adjacent carriers for RF out, to make max. use of frequency resources.
Based on repeated tests, this RMI9041 modulator has been proved to perform in good parameters. It is a device quite suitable for digital TV head-end broadcasting, contribution and distribution applications.
Based on repeated tests, this RMI9041 modulator has been proved to perform in good parameters. It is a device quite suitable for digital TV head-end broadcasting, contribution and distribution applications.
SPECIFICATIONS
| Input | ||
| IP Input | Input Channels | 4*IP(SPTS/MPTS) |
| Transport Protocol | TS over IP Input, UDP protocol | |
| IP Input Mode | Unicast/Multicast | |
| Connector | RJ45, 1000 Base-T Ethernet interface | |
| IGMP Snooping | V2, V3 | |
| Modulation | ||
| Standard | ARIB STD-B31 | |
| FFT | 2K, 4K, 8K | |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| Bandwidth | 6M, | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Hierarchy Mode | A, A+B, A+B+C | |
| External Coding | RS(204, 188) | |
| Output | ||
| RF Output | Number | 1*RF |
| Frequency Range | 30~1000 MHz, successionally adjustable, in 1Hz stepping | |
| Output Attenuation | -30 dB~-10dB, in 0.1 dB stepping | |
| MER | ≥42 dB | |
| Signal Stability | ±0.1 dB | |
| Shoulder | ≥48 dB | |
| Spurious | ≥50 dB | |
| Connector Type | 50Ω, N interface | |
| IP Output | Transport Protocol | TS over IP output, UDP protocol |
| IP Output Channel | 4*MPTS/SPTS(each IP in mirror of the input 4*IP) | |
| IP Output Mode | Unicast/Multicast | |
| Connector Type | RJ45, 1000 Base-T Ethernet interface | |
| Management | ||
| Remote Control | by Web NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by network | |
| Language | English | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 460*300*44 mm | |
| Net Weight | 3.9 KGS | |

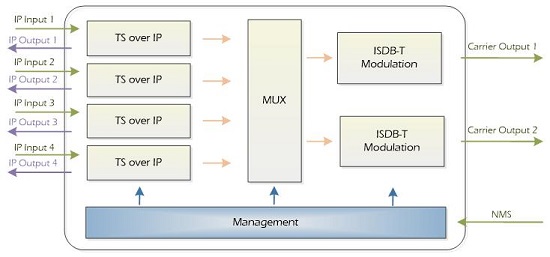

DIAGRAM
REAR PANEL
