DVB MODULATOR
RMC9404 Four-Channel ASI or Tuner to DVB-C(QAM) Modulator
FEATURES
- Standard of DVB-C, EN300 429 / ITU-T J.83A/J.83B/J.83C
- Input with 4*Tuner+6*ASI+2*IP or 8*Tuner+6*ASI or 8*Tuner+2*ASI+2*IP and output with 4*RF(adjacent) by QAM modulation
- DVB-S, DVB-S2, DVB-C optional for Tuner input
- Integrated with multiplexing and scrambling function
- Constellation of modes 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- RF output frequency in range 30~960MHz
- Capable of de-multiplexing of input TS
- Excellent performance of output frequency attenuation
- PCR correction and PSI/SI editing supported
- Low latency, and effective bit rate monitoring
- Easy operation and upgrading by keyboard or LCD
- Management by NMS/SNMP
- Upgrading by Ethernet interface
INTRODUCTIONS
RMC9404 is a professional and high-integrated QAM modulator for multi-channel inputs. It is able to accept 4 or 6 tuner inputs in DVB-S, DVB-S2 or DVB-C mode, 2 or 6 ASI inputs, and 2*IP(UDP) for option. It is integrated with multiplexing and scrambling module, and outputs with excellent QAM modulation index, with up to 4 channels of adjacent frequencies, each of which is independent and directly output by Tuner. This makes the device rather a cost-effective and space-saving item, as if four units were performing with the 4 channels. RMC9404 Four-Channel ASI/Tuner/IP to QAM Modulator is designed in an easy-operating and friendly mode, with convenient local control by LCD or keyboard, and network management by Web NMS. It has been widely applied to digital TV broadcasting, news gathering, interactive services, broadband satellite systems, and so on.
SPECIFICATIONS
| Tuner Input | ||
| Number | 4*Tuner+4*Tuner(Loop out) / 8*Tuner+8*Tuner(Loop out) | |
| Connector Type | F type, 75Ω | |
| DVB-S(QPSK) Input | Frequency Range | 950~2150MHz |
| LNB | 13V/18V | |
| Constellation | QPSK | |
| Roll-off Factor | 0.2, 0.25, 0.35 | |
| Symbol Rate | 2 ~ 45 Mbaud/s | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-S2(QPSK, 8PSK) Input | Frequency Range | 950 ~ 2150 MHz |
| LNB | 3V/18V | |
| Constellation | QPSK | |
| Roll-off Factor | 0.2, 0.25, 0.35 | |
| Symbol Rate | 1 ~ 45 Mbaud/s | |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Pilot | ON/OFF | |
| DVB-C(QAM) Input | Standard | ITU-T J.83A |
| Frequency Range | 168 ~ 858 MHz | |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 356QAM | |
| Symbol Rate | 1.0 ~ 7.0 Mbaud/s | |
| TS Input | ||
| Number | 4*ASI / 6*ASI | |
| Standard | EN50083-9 | |
| Output Bit Rate | Max. 170Mbps | |
| MPEG Frame | 188/204 byte | |
| Mode | byte or burst | |
| Connector Type | 75Ω, BNC interface | |
| IP Input(optional) | ||
| Number | 2*IP, GigE | |
| Input Mode | SPTS/MPTS | |
| Protocol | UDP, | |
| Mode | Unicast / Multicast | |
| Interface | RJ45, 1000M | |
| Multiplexing | ||
| 4-channel of TS multiplexing | ||
| PID re-mapping (auto/manual optional) | ||
| PSI/SI compilation and NIT, LCN insertion | ||
| PCR accurate adjusting | ||
| Max. PID Remapping: 256 per channel | ||
| Scrambling | ||
| Simul-crypt CA | Up to 4*CA | |
| Standard | ETR289, ETSI 101 197, ETSI 103 197 | |
| Connection | Local or remote connect scrambling | |
| Modulation | ||
| Standard | DVB-C(QAM), EN300 429 and ITU-T J.83A/J.83B/J.83C | |
| QAM Channel Qty. | 4 channel, in adjacent frequencies | |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |
| Symbol Rate | 5.0~9.0 Msps, successionally adjustable by 1Ksps stepping | |
| FEC | RS(204, 188) | |
| RF Output | ||
| RF Range | 30 ~ 960 MHz, by 10 KHz stepping | |
| RF Out Attenuation | -16 dBm ~ 0 dBm(each QAM carrier), by 0.5 dB stepping | |
| Output Return Loss | >10 dB | |
| Phase Jitter | <0.5ºRMS | |
| Spurious Rejection | >55 dB | |
| MER | >40 dB | |
| C/N | >45 dB | |
| ACLR | -55 dBc | |
| Connector | F type, 75Ω | |
| IP Output(optional) | ||
| Protocol | TS over IP output, UDP protocol | |
| IP Output Qty. | 4*MPTS | |
| Connector Type | RJ45, Gigabit Ethernet(1000M) | |
| Support empty packets filtering | ||
| Management | ||
| Remote Control | by Web NMS | |
| Local Control | LCD and keyboard on front panel | |
| Upgrading | by Ethernet software or USB | |
| Language | English | |
| General | ||
| Voltage | 110~220V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*455*44 mm | |
| Net Weight | 3.5 KGS | |
DIAGRAM
4*Tuner+6*ASI+2*IP

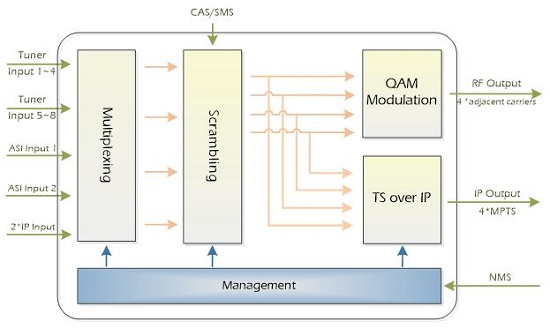

8*Tuner+2*ASI+2*IP

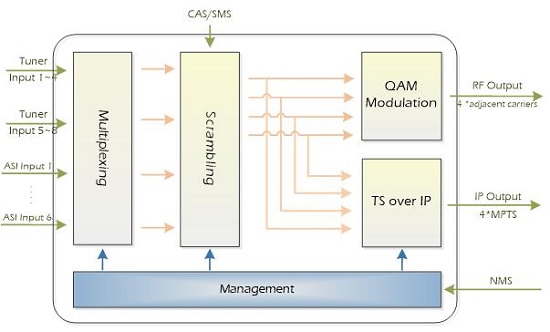

8*Tuner+6*ASI
REAR PANEL
8*Tuner+2*ASI+2*IP
8*Tuner+6*ASI
