DVB MODULATOR
RMC9000 DVB-C(QAM) Modulator
FEATURES
- Standard of DVB-C, EN300 429, ITU-T J.83A/J.83B/J.83C
- Input with 1*ASI and output with 1*RF by QAM modulation
- Constellation of modes 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- RF output frequency in range 30~1000MHz
- RS encoding and convolution interlacing for TS
- Excellent performance of output frequency attenuation
- Synchronously support PID filtering, re-mapping and PSI/SI updating
- Function of NIT insertion
- Easy operation and upgrading by keyboard or LCD
- Remote control by NMS
- Upgrading by Ethernet interface
INTRODUCTIONS
RMC9000 is designed and configured according to standard of European broadband satellite telecommunication, DVB-C(EN300 429). It satisfies a basic QAM modulation function of TS from diversified encoders, multiplexers, scramblers, video servers, DVB gateways and so on, in a stable and mature performance. Apart from its ASI input and RF output paths, it also deals with the TS by RS encoding and convolution interlacing. RMC9000 is a simple but basic and significant device, also integrated with functions of PCR accurate adjusting, PID filtering, remapping, PSI/SI synchronously updating, NIT insertion, etc.. It has been widely applied to digital TV broadcasting, news gathering, interactive services, broadband satellite systems, and so on.
SPECIFICATIONS
| Input | |
| TS | 1*ASI, BNC interface, 75Ω |
| Standard | EN 50083-9 ASI |
| Mode: | byte or burst |
| Modulation | |
| Standard | DVB-C(QAM), EN300 429 / ITU-T J.83A/J.83B/J.83C |
| QAM Channel Qty. | 1 channel |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Symbol Rate | 5.0 ~ 9.0 Msps, successionally adjustable by 1Ksps stepping |
| FEC | RS(204, 188) |
| Output | |
| RF Range | 30 ~ 1000 MHz, by 1KHz stepping |
| RF Out Attenuation | -16 dBm ~ +12 dBm, by 0.5 dB stepping |
| Output Return Loss | >10 dB |
| Phase Jitter | <0.5ºRMS |
| Spurious Rejection | >55 dB |
| MER | ≥40 dB |
| C/N | >45 dB |
| Connector | F type, 75Ω |
| Management | |
| Network Control | by SNMP |
| Local Control | LCD and keyboard on front panel |
| Upgrading | by Ethernet software |
| Language | English |
| General | |
| Voltage | 110~220V AC, 50/60Hz |
| Consumption | 22 W |
| Environment | 0~45°C (Operation), -20~80°C (Storage) |
| Dimension (W*D*H) | 482*300*44 mm |
| Net Weight | 2.3 KGS |

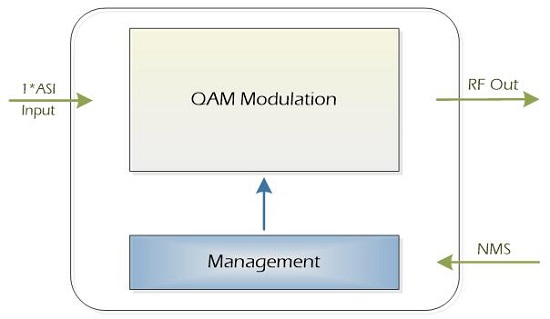

DIAGRAM
REAR PANEL
