DVB MODULATOR
IMT914 Eight-Channel IP to DVB-T Modulator Module
FEATURES
- DVB-T modulation, ETSI EN300 744 standard
- 1GigE Input, RJ45 interface or SFP
- Max. 256 channels TS over UDP/RTP, MPTS/SPTS Input, unicast/multicast
- Up to 840Mbps for all inputs
- Constellation in QPSK, 16QAM, 64QAM
- Up to 4 adjacent DVB-T carriers out per card
- RF output frequency in range 40~860MHz
- RF output level with -16~0 dBm(per DVB-T carrier), 0.5dB stepping
- Excellent RF performance, MER≥40dB
- MPEG-2 / MPEG-4 AVC re-multiplexing, and MPTS/SPTS multiplexing available
- Accurate PCR adjusting
- Excellent performance of output frequency attenuation
- Synchronously support PID filtering, re-mapping(max. 180 PIDs) and PSI/SI edit
- Function of NIT insertion
- Support multiplexed or scrambled TS over UDP output
- Dual power supply
- Remote control by NMS/SNMP
- Upgrading by Ethernet interface
INTRODUCTIONS
IMT914 Eight-Channel IP to DVB-T Multiplexing Modulator Module is the latest IP to DVB-T modulator developed by Trochilus, which integrated with multiplexing function at the same time. Each IMT914 daughter module can work independently, due to the combining of 4*multiplexing modules, >and 4*DVB-T modulation modules. It supports up to 256-channel IP MPTS/SPTS (per daughter card) input with its GigE port and 4*adjacent carriers (30~860MHz) output through the two RF output interfaces.
This IMT914 IP to DVB-T Multiplexing Modulator Module was designed in slot structure and being allowed of a maximum 3-module insertion into one device simultaneously. Its excellent and high integration, and powerful performance make it quite a good choice for the new generation of digital TV systems.
This IMT914 IP to DVB-T Multiplexing Modulator Module was designed in slot structure and being allowed of a maximum 3-module insertion into one device simultaneously. Its excellent and high integration, and powerful performance make it quite a good choice for the new generation of digital TV systems.
SPECIFICATIONS
| Input | ||
| TS | 1*GE, RF45 or SFP interface | |
| Input Channel Qty. | 256 | |
| Standard | EN 50083-9 ASI | |
| Transport Protocol | TS over UDP/RTP, Unicast / Multicast. IGMP V2/V3 | |
| Max. Bit-rate | 840Mbps for all inputs | |
| Multiplexing | ||
| Output Channel Qty. | 4 | |
| Max. PIDs | 180 for each channel | |
| Functions | PID remapping | |
| PCR accurate adjusting | ||
| Auto-generating of PSI/SI table | ||
| Modulation | ||
| Standard | ETSI EN300 744 | |
| DVB-T Channel Qty. | 4 adjacent channels | |
| Constellation | QPSK, 16QAM, 64QAM | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Mode | 2K, 4K, 8K | |
| Output | ||
| RF Output | RF Range | 40 ~ 860 MHz, by 1KHz stepping |
| RF Out Attenuation | -16 dBm ~ 0 dBm(per carrier), by 0.5 dB stepping | |
| Output Return Loss | >10 dB | |
| Phase Jitter | <0.5ºRMS | |
| Spurious Rejection | >55 dB | |
| MER | ≥40 dB | |
| C/N | >45 dB | |
| Connector | 2*F type, output port for 8 carriers, 75Ω | |
| IP Output | IP Output QTY. | 4 (1*GE, RJ45 or SFP interface) |
| Code Rate | 1~108Mbps per channel | |
| IP Out Format | TS over UDP, Unicast/Multicast, IGMP V2/V3 | |
| Management | ||
| Network Control | by NMS/SNMP | |
| Upgrading | by Ethernet software | |
| Language | English | |
| General | ||
| Voltage | 110~220V AC, 50/60Hz | |
| Consumption | 22 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 630*440*44.5 mm | |
| Net Weight | 10 KGS | |

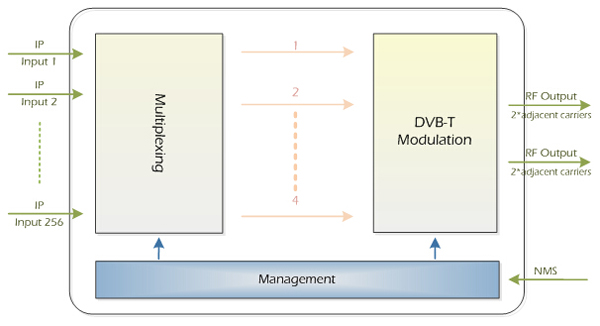

DIAGRAM
REAR PANEL
