DVB ENCODER MODULATOR
REM7208 Eight-Channel CVBS to DVB-C/DVB-T
MPEG-2 SD Encoder Modulator
FEATURES
- Support all DVB-C QAM modes(J.83A/B/C), or DVB-T(COFDM)
- Video compression: MPEG-2 SD
- Audio compression: MPEG-1 Layer II, and AC3
- PAL/NTSC modes available
- Providing ASI and 1*MPTS/8*SPTS IP (UDP) output
- Able to multiplex local digital signals with external TS
- Equipped with empty packets filtering of IP out
- Input interface: 8*CVBS, 8*unbalanced stereo L/R
- Easy operation and upgrading by keyboard or LCD
- SNMP or WEB management for control
INTRODUCTIONS
REM7208 Eight-Channel CVBS to DVB-C/DVB-T MPEG-2 SD Encoder Modulator offers a professional and high-integration modulator, together with encoding module. The device is able to accept 8-channel of CVBS signals, and compresses signals in MPEG-2 SD standard. Additional TS from ASI port is able to be mixed and multiplexed with the input channel(s). The device then modulates signals in DVB-C or 2*adjacent DVB-T mode in excellent index, with one RF and the other test out interfaces. REM7208 is able to be flexibly taken as an independent encoder, or modulator, too, as per its design of modularization. Due to its professional and full functions, REM7208 is able to be applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.
SPECIFICATIONS
| Video Compression | ||
| Video Compression | MPEG-2 SD, 4:2:0 MP@ML | |
| Video Input | 8*CVBS | |
| Analog Video Input | PAL, NTSC | |
| Resolution | NTSC / 720*480_59.94i, 544*480_59.94i, 352*240_59.94i, 320*240_59.94i, 176*240_59.94i, 160*120_59.94i; PAL / 720*576_50i, 640*576_50i, 352*288_50i, 320*288_50i, 176*288_50i, 176*144_50i |
|
| Bit-Rate | 0.125 ~ 19.000 Mbps | |
| Rate Control | CBR/VBR | |
| Audio Compression | ||
| Audio Compression | MPEG-1 Layer II, AC3 | |
| Audio Input | 8*unbalanced stereo L/R | |
| Sampling Rate | 48 KHz | |
| Sampling Accuracy | 24-bit | |
| Bit-Rate | 64 Kbps ~ 320 Kbps (for any channel) | |
| Input | ||
| Video | 8*CVBS, BNC interface | |
| Audio | 8*unbalanced stereo L/R, BNC interface | |
| TS | 1*ASI, BNC interface | |
| Multiplexing | ||
| Multiplexing with external ASI(1*SPTS or1*MPTS) in | ||
| Multiplexing with 8 local encoded programs | ||
| Output | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) |
| Standard | EN 50083-9 ASI | |
| Output Bit Rate | Max. 170 Mbps | |
| MPEG Frame | 188/204 byte | |
| Reflection Loss | >10 dB | |
| Connector Type | 75 Ω, BNC interface | |
| IP Output | Transport Protocol | TS over IP output, UDP protocol, unicast/multicast |
| IP Output Channel | 1*MPTS or 8*SPTS | |
| Connector Type | RJ45, 10/100M | |
| Support empty packets filtering | ||
| Modulation | ||
| DVB-C Mode | Standard | J.83A, J.83B, J.83C |
| Constellation & Bandwidth | (J.83A) 16, 32, 64, 128, 256 QAM / 8M; (J.83B) 64, 256 QAM / 6M; (J.83C) 64, 256 QAM / 6M |
|
| Frequency Range | 30 ~ 950 MHz, by 1 KHz stepping | |
| MER | ≥42 dB | |
| Output Level | -30 ~ 0 dBm(77~107dbμV), by 0.1 dB stepping | |
| Symbol Rate | 5.0 ~ 9.0 Msps adjustable | |
| Out-of-Band Rejection | 55 dB | |
| RF Out | 1*DVB-C frequency | |
| DVB-T Mode | Standard | EN300744 |
| Constellation | QPSK, 16QAM, 64QAM | |
| Frequency Range | 30 ~ 999 MHz, by 1 KHz stepping | |
| MER | ≥42 dB | |
| Output Level | -30 ~ -10 dBm(77~97dbμV), by 1 dB stepping | |
| Bandwidth | 6M, 7M, 8M | |
| FFT | 2K, 8K | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| RF Out | 2*adjacent DVB-T frequency | |
| Management | ||
| Connector | 1*RJ-45, 10/100 Base-T (NMS interface) | |
| Remote Control | by NMS | |
| Local Control | LCD and keyboard on front panel | |
| General | ||
| Voltage | 100~240V AC, 50/60Hz | |
| Consumption | 25 W | |
| Environment | 0~45°C (Operation), -20~80°C (Storage) | |
| Dimension (W*D*H) | 482*410*44 mm | |
| Net Weight | 2.8 KGS | |

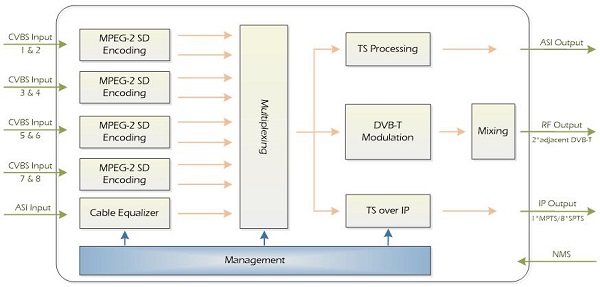

DIAGRAM
