DVB ENCODER MODULATOR
REM7204 Four-Channel CVBS to RF
MPEG-2 SD Encoder Modulator
FEATURES
- Integrated with video/audio encoding and modulation modules in one unit
- Video compression: MPEG-2 SD MP@ML(4:2:0)
- Standard of modulation in DVB-C / DVB-T / ATSC-T / ISDB-T/Tb mode
- Additional ASI input available for multiplexing with local input 4 channels
- Accept 4-channel of CVBS signals
- ASI and IP(100M, UDP) output available
- LCN, PID and PSI/SI editing supported
- Easy-operation by LCD and keyboard on front panel
- Network upgrading by NMS and http web network management supported
INTRODUCTIONS
REM7204 MPEG-2 SD CVBS to Tuner Four-Channel Encoder Modulator offers a professional and high-integration modulator, together with encoding module. The device is able to accept 4-channel of CVBS signals, and compresses signals in MPEG-2 SD standard. Additional TS from ASI and Tuner(DVB-S/S2 or DTMB) ports is able to be mixed and multiplexed with the input channel(s). The device then modulates signals in DVB-C, DVB-T/T2, ATSC-T, or ISDB-T/Tb mode in excellent index. REM7204 is able to be flexibly taken as an independent encoder, or modulator, too, as per its design of modularization. Due to its professional and full functions, REM7204 has been widely applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.
SPECIFICATIONS
| Video Compression | |||
| Video Compression | MPEG-2 SD, MP@ML(4:2:0) | ||
| Video Input | CVBS; Tuner/SDI/YPbPr optional |
||
| Resolution | (PAL) 720*576_60i; (NTSC) 720*480_50i |
||
| Audio Compression | |||
| Audio Compression | MPEG-1 Layer II | ||
| Audio Input | Unbalanced L/R | ||
| Sample Rate | 48 KHz | ||
| Bit Rate | 64, 96, 128, 192, 256, 320 Kbps | ||
| Input | |||
| Video Input | 4*CVBS 2*SDI/2*Tuner/1*YPbPr optional |
||
| Audio Input | 4*unbalance L/R 2*SDI optional |
||
| ASI Input | Number | 1*ASI | |
| Connector Type | BNC interface, 75Ω | ||
| Tuner Input | 1*Tuner, BNC interface, 75Ω | ||
| DVB-S/DVB-S2/DTMB tuner in compatible, for mixing | |||
| WIFI Module(optional) | |||
| Protocol of Mobile Receiver | DLNA, Airplay | ||
| Operation Mode | 802.11A/B/G/N | ||
| Frequency Range | 2.4000 ~ 2.4835 GHz | ||
| 5.150 ~ 5.825 GHz | |||
| Transport Speed | 802.11A | 6, 9, 12, 24, 36, 48, 54 Mbps | |
| 802.11B | 1, 2, 5.5, 11 Mbps | ||
| 802.11G | 6, 9, 12, 24, 36, 48, 54 Mbps | ||
| 802.11N (20 MHz) | MCS0-15, up to 144 Mbps | ||
| 802.11N (40 MHz) | MCS0-15, up to 300 Mbps | ||
| WIFI Output Level | 2.4 GHz | 802.11b: 16 ± 1.5 dBm | |
| 802.11g: 14 ±1.5 dBm | |||
| 802.11n(20MHz): 13 ±1.5 dBm | |||
| 802.11n(40MHz): 13 ±1.5dBm | |||
| 5 GHz | 802.11a: 14 ± 1.5 dBm | ||
| 802.11n(20/40MHz): 12 ±1.5 dBm | |||
| Antenna | 2*bilateral antenna | ||
| Modulation(Single-Option) | |||
| DVB-C Mode | Standard | J.83A, J.83B, J.83C | |
| Constellation & Bandwidth | (J.83A) 16, 32, 64, 128, 256 QAM / 8M; (J.83B) 64, 256 QAM / 6M; (J.83C) 64, 256 QAM / 6M |
||
| Frequency Range | 30 ~ 960 MHz, by 1 KHz stepping | ||
| MER | ≥42 dB | ||
| Output Level | -30 ~ -10 dBm(77~97dbμV), by 1 dB stepping | ||
| Symbol Rate | (J.83A) 5 ~ 7 MSymbol/s; (J.83B) fixed; (J.83C) fixed |
||
| Out-of-Band Rejection | 55 dB | ||
| RF Out | 1*DVB-C frequency or 4*DVB-C adjacent frequencies | ||
| DVB-T Mode | Standard | DVB-T (EN300 744, EN304 744, COFDM) | |
| Constellation | QPSK, 16QAM, 64QAM | ||
| Bandwidth | 6M, 7M, 8M | ||
| FFT | 2K, 8K | ||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| MER | ≥42 dB | ||
| Frequency Range | 30 ~ 960 MHz, in 1 KHz stepping | ||
| Output Level | -30 ~ -10 dBm(77~97 dbμV), by 1 dB stepping | ||
| RF Out | 1*DVB-T frequency or 2*DVB-T adjacent frequencies | ||
| ATSC Mode | Standard | ATSC A/53 | |
| Constellation | 8VSB | ||
| Frequency Range | 30 ~ 960 MHz, in 1 KHz stepping | ||
| Output Level | -26 ~ -10 dBm(81~97 dbμV), by 1 dB stepping | ||
| MER | ≥40 dB | ||
| Tuner Out | 1*8VSB or 2*8VBS adjacent frequencies | ||
| ISDB-T Mode | Standard | ARIB STD-B31 | |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||
| Bandwidth | 6M | ||
| Frequency Range | 30 ~ 960 MHz, by 1 KHz stepping | ||
| Output Level | -26 ~ -10 dBm(77~97 dbμV), by 1 dB stepping | ||
| MER | ≥42 dB | ||
| Outer Coding | RS (204, 188) | ||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
| Convolutional Coding | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| FFT | 2K, 4K, 8K | ||
| RF Out | 1*ISDB-T frequency | ||
| Output | |||
| RF Output | Number | 1*RF | |
| Connector Type | 75Ω, F interface | ||
| ASI Output | Number | 1*ASI+1*ASI(backup) | |
| Standard | EN50083-9 | ||
| Output Loss | >10 dB | ||
| Connector Type | 75Ω, BNC interface | ||
| IP Output | Number | 1*TS over IP | |
| Protocol | UDP | ||
| Mode | unicast or multicast | ||
| Output | 1*MPTS or multiple MPTS(same as RF out) | ||
| Connector Type | RJ45, 10/100M | ||
| Support empty packet filtering | |||
| Management | |||
| Remote Control | by NMS | ||
| Local Control | LCD and keyboard on front panel | ||
| Upgrading | by Ethernet interface | ||
| Language | English | ||
| General | |||
| Voltage | 100~240V AC, 50/60Hz | ||
| Power Consumption | 25 W | ||
| Environment | 0~50°C (non-condensing) | ||
| Dimension (W*D*H) | 482*300*44 mm | ||
| Net Weight | 4.5 KGS | ||

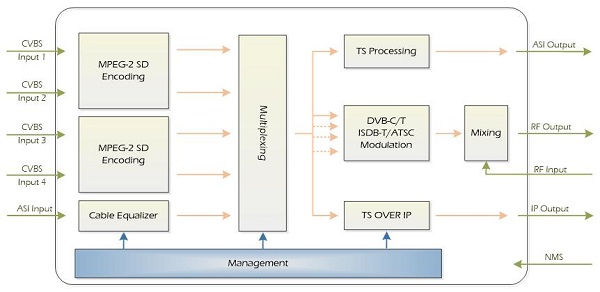

DIAGRAM
REAR PANEL
