DVB ENCODER MODULATOR

REM7004 Four-Channel DVB-S/S2
to DVB-C/DVB-T TransModulator

HD/SD TRANSCODER

FEATURES

  • Integrated with demodulation, trans-multiplexing, and modulation modules in one unit
  • Up to 4*QPSK/8PSK DVB-S/S2 inputs
  • 4*CI slot configured, with each able to decrypt multiple programs
  • ASI input for re-multiplexing available
  • RF in additionally available, for mixing
  • 1 or 2*adjacent DVB-T, or 1 or 4*DVB-C out
  • ASI and IP(100M, UDP) output available
  • LCN(Logical Channel Number) supported
  • Good performance in modulation quality
  • Easy-operation by LCD and keyboard on front panel
  • Network upgrading by NMS and http web network management supported

  INTRODUCTIONS

REM7004 4*DVB-S/S2 to DVB-C/DVB-T TransModulator offers a professional and high-integrated modulator, together with demodulation, re-multiplexing and modulation functions. The device is able to accept 4 satellite signals in DVB-S/S2, demodulate and re-multiplex them with additional ASI in or/and RF(DVB-C, DVB-T, ISDB-T or ATSC) in. The device then modulates signals in DVB-T(in 1 or 2 adjacent carriers) or DVB-C(in 1 or 4 adjacent carriers). Due to its professional and full functions, REM7004 has been widely applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.



  SPECIFICATIONS

Tuner Input
DVB-S/S2 Input Demodulation Mode QPSK, 8PSK
Input Frequency 950~2150MHz
Symbol Rate 2~45Msps
FEC DVB-S(QPSK): 1/2, 2/3, 3/4, 5/6, 7/8;
DVB-S/S2(QPSK, 8PSK): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Input
DVB-S/S2 Tuner Input Number 4*DVB-S/S2
Connector Type F interface, 75Ω
ASI Input Number 1*ASI, for re-multiplexing
Connector Type BNC interface, 75Ω
Tuner Input 1*Tuner, F interface, 75Ω
DVB-C/ DVB-T /ISDB-T/ATSC tuner in compatible, for mixing
Modulation
DVB-T Mode Standard DVB-T (EN300 744, COFDM)
Output Channel Single/Dual Carriers
Constellation QPSK, 16QAM, 64QAM
Bandwidth 6M, 7M, 8M
FFT 2K, 8K
Guard Interval 1/32, 1/16, 1/8, 1/4
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥42 dB
Frequency Range 30 ~ 960 MHz, in 1 KHz stepping
Output Level -30 ~ -10 dBm(81~97 dbμV), by 0.1 dB stepping
RF Out 1*DVB-T frequency or 2*DVB-T adjacent frequencies
DVB-C Mode Standard J.83A , J.83B, J.83C
Output Channel Single/Four Carriers
Constellation J.83A: 16 / 32 / 64 / 128 / 256 QAM (8M);
J.83B: 64 / 256 QAM (6M);
J.83C: 64 / 256 QAM (6M)
Symbol Rate 5.000~9.000 Msps
MER ≥42 dB
Frequency Range 30 ~ 960 MHz, in 1 KHz stepping
Output Level -30 ~ -10 dBm(81~97 dbμV), by 0.1 dB stepping
RF Out 1*DVB-C frequency or 4*DVB-C adjacent frequencies
Output
RF Output Number 1*RF(1 or 2*adjacent DVB-T, 1 or 4*adjacent DVB-C)
Connector Type 75Ω, F interface
ASI Output Number 1*ASI+1*ASI(backup)
Standard EN50083-9
Output Loss >10 dB
Connector Type 75Ω, BNC interface
IP Output Number 1*TS over IP, 1*MPTS
Protocol UDP, unicast/multicast
Connector Type RJ45, 10/100M
Support empty packet filtering
Management
Remote Control by NMS
Local Control LCD and keyboard on front panel
Upgrading By Ethernet interface
Language English
General
Voltage 100~240V AC, 50/60Hz
Power Consumption 25 W
Environment 0~50°C (non-condensing)
Dimension (W*D*H) 410*460*44 mm
Net Weight 4.5 KGS

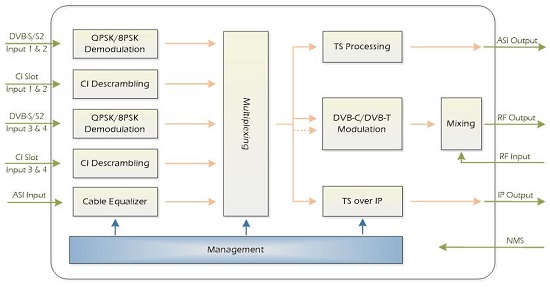

  DIAGRAM
