DVB ENCODER MODULATOR

REM7004 Four-Channel HDMI&CVBS/YPbPr to RF

MPEG-2/H.264 Encoder Modulator

HD/SD TRANSCODER

FEATURES

  • Integrated with video/audio encoding & modulation modules in one unit
  • Video compression: MPEG-2 & MPEG-4 AVC/H.264 SD /HD, up to 1080P(MPEG-4 AVC) & 1080i(MPEG-2 HD)
  • Audio compression: MPEG-1 Layer II, MPEG-2 AAC, MPEG-4 AAC, (optional)AC3 2.0
  • Modulation in (4*)DVB-C/(2*)DVB-T/(4*)ATSC-T/ (2*)ISDB-T mode (adjacent carriers out)
  • Accept 4-channel of HDMI &CVBS YPbPr signals
  • ASI and IP(100M, UDP) output available
  • Additional ASI and Tuner input available for multiplexing with local input 4 channels
  • Closed Caption(CC) support optional 2(when input with CVBS)
  • LCN supported for DVB-C/DVB-T/ISDB-T mode, VCT supported for ATSC mode
  • Good performance in low delay
  • Easy-operation by LCD and keyboard on front panel
  • Network upgrading by NMS and http web network management supported

  INTRODUCTIONS

REM7004A Four-Channel HDMI & CVBS/YPbPr to RF MPEG-2/H.264 Encoder Modulator offers a professional and high-integration modulator, together with encoding, multiplexing, modulation modules and so on. The device is able to accept 4-channel of HDMI or CVBS or YPbPr, and compress signals in MPEG-2 SD or MPEG-4 AVC/H.264 HD standard. Additional TS from ASI and Tuner(DVB-C, DVB-T/T2, DVB-S/S2) ports is able to be multiplexed with the input channel(s). The device then modulates signals in DVB-C, DVB-T, ATSC-T, or ISDB-T mode in excellent index. Due to its professional and full functions, REM7004A has been widely applied to IPTV system, digital TV broadcasting & distribution systems, home entertainment, advertisement broadcasting, etc., in shopping mall, hospital and school, hotel and restaurant, museum, theater, cinema, community, airport, railway station, public square, club, and so on.



  SPECIFICATIONS

Video Compression
HDMI Input Video Compression MPEG-2, MPEG-4 AVC/H.264
Video Input HDMI
Resolution 1920*1080_60P, 1920*1080_50P, (for MPEG4 AVC/H.264 only);
1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P;
720*480_60i, 720*576_50i
CVBS/YPbPr Input Video Compression MPEG-2, MPEG-4 AVC/H.264
Video Input CVBS/YPbPr
Resolution YPbPr/ 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P;
CVBS/ 720*480_60i, 720*576_50i
Audio Compression
HDMI Input Audio Compression MPEG-1 Layer II; MPEG-2-AAC, MPEG-4-AAC; AC3 2.0 optional;
DD AC3 (2.0/5.1/7.1) passthrough
Video Input HDMI
Sample Rate 48 KHz
Bit Rate 64, 96, 128, 192, 256, 320 Kbps
CVBS/YPbPr Input Audio Compression MPEG-1 Layer II; MPEG-2-AAC, MPEG-4-AAC; AC3 2.0 optional
Video Input RCA ,4*Stereo/8*mono/4*SPDIF
Sample Rate 48 KHz
Bit Rate 64, 96, 128, 192, 256, 320 Kbps
Input
Video Input 4*HDMI;
4*CVBS/YPbPr
Audio Input 4*HDMI;
4*L&R,4*SPDIF
ASI Input Number 1*ASI
Connector Type BNC interface, 75Ω
RF Input 1*RF, F interface, 75Ω
DVB-C/ DVB-T/T2 /DVB-S/DVB-S2 RF in compatible, for mixing
Modulation
DVB-C Mode Standard J.83A, J.83B, J.83C
Output Channel Qty. Single/Dual/Quad Carriers
Constellation & Bandwidth (J.83A) 16, 32, 64, 128, 256 QAM / 8M;
(J.83B) 64, 256 QAM / 6M;
(J.83C) 64, 256 QAM / 6M
Frequency Range 30 ~ 960 MHz, by 1 KHz stepping
MER ≥42 dB
Output Level -30 ~ -10 dBm(77~97dbμV), by 1 dB stepping
Symbol Rate J.83A-5 ~ 7MSymbol/s;
J.83B - fixed;
J.83C - fixed
Out-of-Band Rejection 55 dB
RF Out 1*DVB-C frequency or 4*DVB-C adjacent frequencies
DVB-T Mode Standard DVB-T (EN300 744, COFDM)
Output Channel Single/Dual Carriers
Constellation QPSK, 16QAM, 64QAM
Bandwidth 6M, 7M, 8M
FFT 2K, 8K
Guard Interval 1/32, 1/16, 1/8, 1/4
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥40 dB
Frequency Range 30 ~ 960 MHz, in 1 KHz stepping
Output Level -30 ~ -10 dBm(77~97 dbμV), by 1 dB stepping
RF Out 1*DVB-T frequency or 2*DVB-T adjacent frequencies
ATSC Mode Standard ATSC A/53
Output Channel Single/Dual/Quad Carriers
Constellation 8VSB
Frequency Range 30 ~ 960 MHz, in 1 KHz stepping
Output Level -26 ~ -10 dBm(81~97 dbμV), by 1 dB stepping
MER ≥42 dB
RF Out 1*ATSC frequency or 4*ATSC adjacent frequencies
ISDB-T Mode Standard ARIB STD-B31
Output Channel Single/Dual Carriers
Constellation DQPSK, QPSK, 16QAM, 64QAM
Bandwidth 6M
Frequency Range 30 ~ 960 MHz, by 1 KHz stepping
Output Level -30 ~ -10 dBm(77~97 dbμV), by 1 dB stepping
MER ≥42 dB
Outer Coding RS (204, 188)
Guard Interval 1/32, 1/16, 1/8, 1/4
Convolutional Coding 1/2, 2/3, 3/4, 5/6, 7/8
FFT 2K, 4K, 8K
RF Out 1*ISDB-T frequency or 2*ISDB-T frequency
Output
RF Output Number 1*RF
Connector Type 75Ω, F interface
ASI Output Number 1*ASI+1*ASI(backup)
Standard EN50083-9
Output Loss >10 dB
Connector Type 75Ω, BNC interface
IP Output Number 1*TS over IP, 4*SPTS
Protocol UDP, RTP/RTSP
Connector Type RJ45, 10/100M
Support empty packet filtering
Management
Remote Control by Web NMS
Local Control LCD and keyboard on front panel
Upgrading By Ethernet interface
Language English
General
Voltage 100~240V AC, 50/60Hz
Power Consumption 25 W
Environment 0~50°C (non-condensing)
Dimension (W*D*H) 410*460*44 mm
Net Weight 4.5 KGS

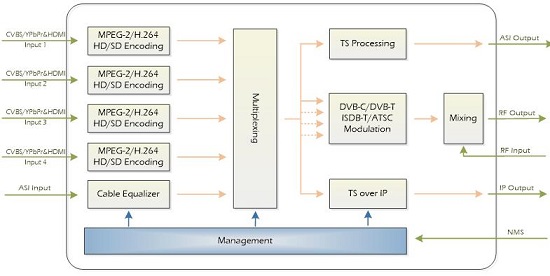

  DIAGRAM



REAR PANEL
