REM7001 MPEG-2/H.264 DVB-S/S2 Modulator

• Integrated with video/audio encoding and modulation modules in one unit
• Video compression: MPEG-2 & MPEG-4 AVC/H.264 SD/HD
• Standard of modulation in DVB-S/S2(EN302 307, EN300 421) mode
• Output with frequency range in 950~2150MHz (RF) and 50~200 MHz(IF) for option

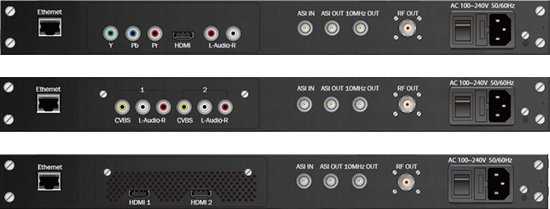

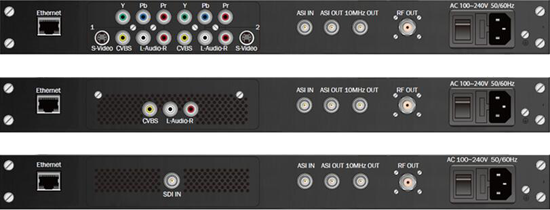

• Multiple video(HDMI, SDI, YPbPr, CVBS, S-Video) and audio inputs for option
• Additional ASI input available
• LCN insertable, PID and PSI/SI editable
• BISS scrambling function configured
• 24V power coupling output supported(RF item)
• GPS 10MHz reference clock embedded
• Swappable design modules (except 2*YPbPr + 2*CVBS +2*S-Video item)
• Low latency function
• Easy-operation by LCD and keyboard on front panel
• Network upgrading by NMS and http web network management supported

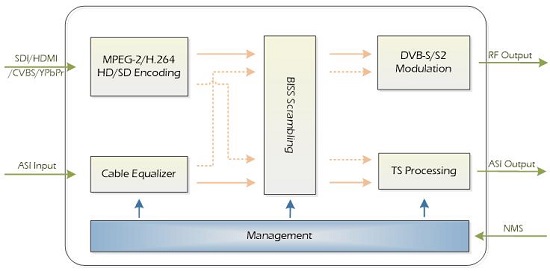

REM7001 MPEG-2/H.264SD/ HD DVB-S/S2 Encoder Modulator offers a professional and high-integration modulator, together with encoding module and other functions. The device is able to accept several kinds of inputs, including HDMI, SDI, YPbPr, CVBS, and S-Video, and compress signals in MPEG-2 SD or MPEG-4 AVC/H.264 HD standard. Additional TS from ASI port is able to be multiplexed with the input channel(s). The device works in DVB-S/S2(QPSK, 8PSK) modulation mode, and outputs RF in 950~2150 MHz (or 50~200 MHz, IF) in excellent index. REM7001 is default configured with multiple functions of BISS scrambling, GPS 10MHz reference clock, low latency, 24V power coupling output, etc.. As more applications of DVB-S/S2 system needed, this device becomes an ideal and popular choice, for its cost effectiveness, good performance and diversified functions for satellite uplink and broadcasting projects.
